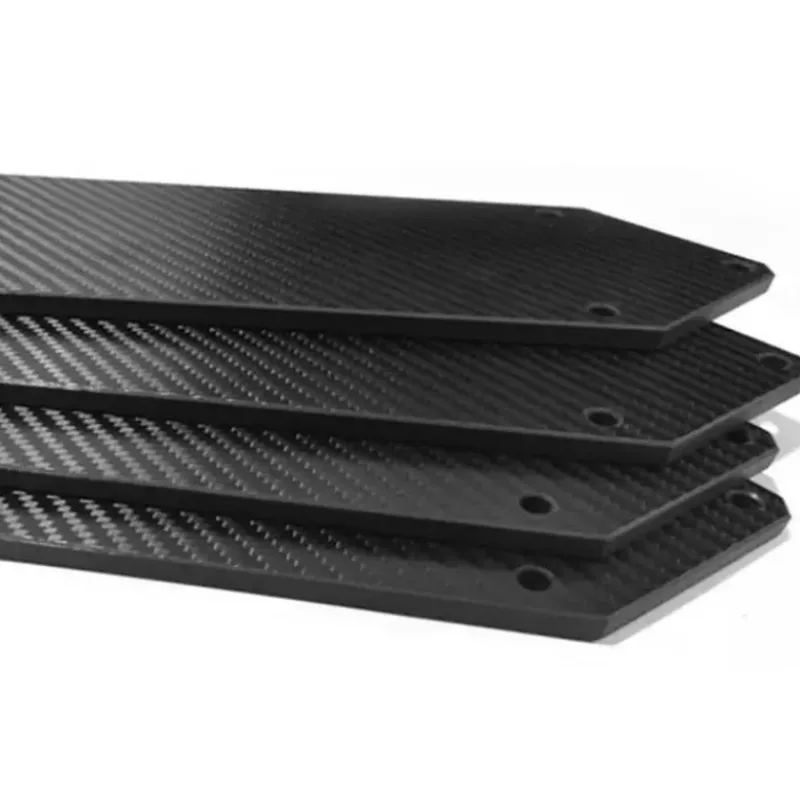

Carbon Fiber Sheet Manufacturer In China

1. Carbon Fibers

• Primary Material: Carbon fiber sheets are made from long, thin strands of carbon fibers. These fibers are the fundamental building blocks of the sheet.
• Manufacturing Process: Carbon fibers are produced from a precursor material, typically polyacrylonitrile (PAN), which undergoes high-temperature treatment in an inert atmosphere (known as pyrolysis) to remove non-carbon elements and form the carbon structure.
• Properties: Carbon fibers have excellent strength-to-weight ratios, stiffness, and resistance to high temperatures. They are extremely strong but relatively lightweight.

2. Polymer Resin (Matrix Material)

• Common Resins Used:

• Epoxy Resin: The most commonly used resin for carbon fiber composites due to its high strength, durability, and excellent adhesion to carbon fibers.
• Polyester Resin: Less expensive but not as strong or durable as epoxy. Commonly used for less demanding applications.
• Vinyl Ester Resin: Offers good chemical resistance and is used in some high-performance applications.
  • Purpose: The resin acts as the matrix material that binds the carbon fibers together, providing shape, stability, and the ability to transfer loads between fibers.

3. Weave Patterns

• Tejido liso: A simple, balanced weave pattern in which the fibers alternate over and under each other in a checkerboard fashion.
• Tejido de sarga: A more flexible weave pattern where the fibers are woven in a diagonal fashion, often used for applications requiring better handling and a more aesthetic appearance.
• Unidirectional Weave (UD): The fibers are aligned in one direction, which maximizes strength and stiffness in that direction.
• Tejido de satén: A smooth, refined weave pattern that is often used for aesthetic purposes while providing a balance of strength and flexibility.

4. Additives and Fillers (Optional)

• UV Protectants: Some carbon fiber sheets are treated with UV-resistant coatings to prevent degradation when exposed to sunlight.
• Flame Retardants: For applications where fire resistance is critical, flame retardants may be added to the resin.
• Conductive Additives: In some cases, carbon fiber sheets are designed to be electrically conductive. These sheets may include additional conductive materials or treatments to enhance conductivity.
• Surface Finish Coatings: Carbon fiber sheets often have additional coatings for improved surface quality, such as gloss, matte, or textured finishes.

5. Curing Agents

• Hardener or Catalyst: Curing agents are used to harden the resin during the manufacturing process, ensuring that the resin bonds properly with the fibers and provides the sheet with its required mechanical properties.
• Curing Process: The resin and fibers are typically cured under heat and pressure, either in an oven (for wet layup) or an autoclave (for prepreg carbon fiber sheets), to solidify the material and create the final composite structure.

6. Additional Materials (For Specialized Sheets)

• Carbon Nanotubes (CNTs): Sometimes, carbon nanotubes are incorporated into the composite to improve strength, stiffness, or electrical conductivity.
• Other Fibers: In some cases, carbon fibers are mixed with other reinforcement fibers (e.g., glass fibers) to balance cost, weight, and performance in applications like automotive or sporting goods.
• Core Materials: In sandwich panels, carbon fiber sheets may be bonded to lightweight core materials (such as foam or honeycomb structures) to provide additional strength and reduce weight.

7. Manufacturing Process

• Wet Layup: Carbon fiber sheets are produced by layering carbon fiber fabric and applying resin to each layer. After the layers are stacked, the material is cured under heat and pressure to form a solid composite sheet.
• Prepreg (Pre-impregnated): Prepreg carbon fiber sheets are pre-impregnated with resin during manufacturing, which provides better consistency and control over resin content. The sheets are then cured under heat to solidify the composite.
• Autoclave Curing: For high-performance applications, the material may be cured in an autoclave under controlled pressure and temperature conditions, which improves the material’s strength and mechanical properties.

8. Final Product

• Flexibility and Strength: The final carbon fiber sheet, after curing, is a lightweight yet extremely strong material, ideal for applications where high strength-to-weight ratio, durability, and resistance to environmental factors are required.
• Thickness and Weight: Carbon fiber sheets can vary greatly in thickness (from 0.25mm to 10mm or more) and weight, depending on the number of layers, resin type, and weave pattern used.

1. Plain Weave (1×1 Weave)

• Descripción: The simplest and most commonly used carbon fiber weave, the plain weave features fibers that alternately pass over and under each other in a simple, crisscross pattern.
• Características:

• Balanced weave with equal strength in both directions (warp and weft).
• Provides a smooth and uniform surface.
• Good for general-purpose use and applications where aesthetic appearance is important.
  • Applications: Automotive parts, consumer electronics, structural components, and lightweight, decorative applications.

2. Twill Weave (2×2, 4×4 Weave, etc.)

• Descripción: The twill weave features fibers that alternate between over and under in a diagonal pattern. This results in a distinct, diagonal pattern on the surface.
• Características:

• 2×2 Twill Weave: Each fiber crosses over two fibers and then under two fibers, creating a 45-degree diagonal pattern.
• 4×4 Twill Weave: Similar to the 2×2, but with a more complex pattern of four fibers crossing over and under at a steeper angle.
• More flexible and drapes better compared to plain weave.
• Offers higher resistance to cracking and breaking, making it more suitable for dynamic applications.
  • Applications: Aerospace components, automotive parts, sporting equipment (e.g., bicycles, tennis rackets), and high-performance industrial applications.

3. Tejido de satén

• Descripción: A satin weave is a variation of the twill weave, where the fibers are arranged in a way that creates a smooth, shiny surface with minimal visible pattern. The fibers move over a greater number of fibers (e.g., over 5, under 1), resulting in a softer and smoother finish.
• Características:

• Highly reflective and glossy finish.
• Provides a smooth surface with minimal texture.
• Better resistance to abrasion due to the reduced number of crossing points.
• Often used when a polished, high-end aesthetic is desired.
  • Applications: Luxury automotive parts, high-end sports equipment, and consumer electronics that prioritize appearance.

4. Unidirectional (UD) Weave

• Descripción: In unidirectional carbon fiber, all fibers are aligned in one direction, which is different from traditional woven patterns where fibers cross over each other.
• Características:

• Maximum strength in one direction (along the fiber orientation).
• Ideal for applications where strength and stiffness are critical in a single direction.
• Can be combined with other woven fabrics (e.g., woven fabrics on the outer layers and UD in the inner layers) to provide balanced strength in multiple directions.
• Offers higher tensile strength and stiffness than woven fabrics.
  • Applications: Aircraft wings, load-bearing structures, sports equipment, and custom parts requiring high directional strength.

5. Bidirectional Weave

• Descripción: This is a weave pattern where the fibers are oriented in two directions, typically 90 degrees to each other. This makes the material stronger in both directions.
• Características:

• Balanced strength in both directions, but not as strong as unidirectional carbon fiber in each direction individually.
• Can provide better overall stability for certain applications.
• Easier to handle and work with compared to unidirectional fiber, as it doesn’t have a dominant orientation.
  • Applications: General-purpose structural parts, reinforced composite structures, and automotive panels.

6. Harness Weave

• Descripción: The harness weave is similar to plain weave but with a higher number of warp and weft threads, making it more durable and resistant to damage.
• Características:

• Provides more interlacing of fibers compared to plain weave.
• More resistant to wear and tear and less likely to stretch.
• Less flexible but more rigid than plain weave, offering enhanced strength and durability.
  • Applications: Aerospace components, automotive parts, and other applications requiring enhanced durability.

7. Double Twill (6k, 12k, etc.) Weave

• Descripción: Double twill is a modified version of twill weave, where two fiber bundles are interlaced together in a twill pattern. The fiber bundles can range in thickness (e.g., 6k, 12k, where “k” refers to the number of carbon fibers per tow).
• Características:

• Stronger than regular twill due to the larger fiber bundle size.
• Provides increased strength and stiffness while maintaining flexibility.
• Available in various fiber bundle sizes (e.g., 6k, 12k), which provides different levels of strength.
  • Applications: Heavy-duty structural applications, such as in aerospace, military, and automotive industries, where a balance of strength and flexibility is necessary.

8. Plain Weave with Overlapping (Multiaxial) Weave

• Descripción: A multiaxial weave involves stacking multiple layers of carbon fiber fabric oriented in different directions (typically at 0°, 90°, 45°, and sometimes even -45° angles).
• Características:

• Provides strength in multiple directions, allowing the material to be flexible while still being durable.
• Often used in complex, 3D parts that require reinforcement from multiple angles.
• Can be pre-impregnated with resin, offering high-quality, low-waste composite manufacturing.
  • Applications: Complex composite structures in aerospace, automotive, and marine industries, where parts are required to resist stress in multiple directions.

9. Tejido 3D

• Descripción: This is a three-dimensional carbon fiber weave where fibers are woven not only in two directions (warp and weft) but also in the thickness direction, creating a solid, three-dimensional structure.
• Características:

• Strong and durable with resistance to delamination and shear forces.
• Provides an integrated, multi-directional strength that is useful for high-performance applications.
• More complex to produce, resulting in higher manufacturing costs.
  • Applications: High-performance applications like aerospace and military, where extreme durability and strength are required.

10. Quilted Weave

• Descripción: This type of weave is similar to the plain weave but with an added technique of alternating threads more distinctly to create a quilted texture.
• Características:

• Provides enhanced flexibility and strength while maintaining an aesthetic appearance.
• Offers good draping characteristics, making it suitable for complex shapes.
  • Applications: High-end consumer products, decorative surfaces, and some automotive interior applications.

1. Industria aeroespacial

• Aircraft Components: Carbon fiber is used extensively in the aerospace sector to create lightweight yet strong components for both commercial and military aircraft.

• Wing structures: Carbon fiber composites are used for wing spars, wing skins, and other load-bearing components, reducing the overall weight while maintaining high strength.
• Fuselage: Parts of the aircraft fuselage, such as panels and doors, benefit from carbon fiber’s resistance to stress and strain.
• Interior panels: Lightweight, high-strength carbon fiber sheets are used for interior components, such as flooring, cabin walls, and seating, to improve fuel efficiency.
  • Spacecraft: Carbon fiber materials are used in spacecraft for parts such as thermal shields, structural components, and satellite bodies because of their lightweight and heat-resistant properties.
  • Helicopters and Drones: Lightweight and durable carbon fiber is used for rotor blades, frames, and other structural elements in helicopters and drones to improve performance and endurance.

2. Industria del automóvil

• Body Panels: Carbon fiber sheets are used for manufacturing lightweight and strong body panels, including hoods, roofs, and fenders. This reduces the overall weight of the vehicle and enhances fuel efficiency while maintaining strength and safety.
• Chassis and Frames: Carbon fiber is commonly used for structural elements of high-performance cars and racing vehicles, offering a robust, rigid frame without excessive weight.
• Interior Components: Parts such as dashboards, center consoles, and door panels are often made from carbon fiber composites, providing both aesthetic appeal and reduced weight.
• Performance Parts: Sports cars and racing vehicles use carbon fiber for components like spoilers, splitters, rear diffusers, and even seat structures due to its strength and ability to withstand high stress.
• Electric Vehicles (EVs): Lightweight carbon fiber sheets contribute to improving the efficiency and range of electric vehicles by reducing the overall weight, enhancing battery performance.

3. Equipamiento deportivo

• Bicycles: Carbon fiber is widely used in the manufacturing of bicycle frames, forks, and wheels. The material provides the necessary stiffness, strength, and low weight, making bicycles lighter and more efficient.
• Tennis Rackets and Golf Clubs: Carbon fiber sheets are used to produce lightweight and strong tennis rackets, golf club shafts, and other equipment, improving performance by providing more control and stability during use.
• Skis and Snowboards: Carbon fiber composites are used in ski and snowboard manufacturing to enhance strength and flexibility while reducing weight, offering better performance on the slopes.
• Fishing Rods: High-performance fishing rods are often made from carbon fiber sheets to ensure a strong, flexible, and lightweight rod that can handle substantial stress.
• Helmets: Carbon fiber is used in making protective gear like racing helmets and bike helmets, offering high protection while maintaining a lightweight structure.

4. Marine Industry

• Boat Hulls: Carbon fiber sheets are used in the construction of high-performance boat hulls. They help reduce weight, increase speed, and improve fuel efficiency while maintaining structural integrity.
• Marine Equipment: Carbon fiber is used for various marine components such as rudders, mast supports, and deck components to reduce the weight and improve performance.
• Racing Yachts: Carbon fiber composites are particularly popular in the construction of racing yachts and sailboats, where weight reduction is critical for enhancing speed and agility on the water.

5. Construction and Architecture

• Refuerzo estructural: Carbon fiber sheets are used to reinforce concrete, steel, and other structural materials in construction projects. These sheets are applied to bridges, buildings, and other structures to enhance load-bearing capacity without adding significant weight.
• Seismic Retrofitting: Carbon fiber composites are often used to strengthen existing buildings and structures in areas prone to seismic activity, providing better earthquake resistance.
• Facade Panels: Carbon fiber is sometimes used in architectural designs for building facades, providing both aesthetic appeal and durability.

6. Military and Defense

• Armored Vehicles: Carbon fiber composites are used in military vehicles for armor protection, where lightweight, high-strength materials are needed to provide better mobility without sacrificing safety.
• Ballistic Protection: Carbon fiber sheets are incorporated into ballistic vests and shields, offering enhanced protection without adding excessive weight.
• Drones and UAVs: Military drones and unmanned aerial vehicles (UAVs) use carbon fiber sheets to reduce weight and improve payload capacity while maintaining structural integrity.

7. Electronics and Consumer Goods

• Smartphones, Laptops, and Tablets: Carbon fiber sheets are sometimes used for the outer casing of electronics, providing a sleek, modern look while adding strength and reducing weight. They also improve heat dissipation.
• Laptop Stands and Phone Cases: Some premium laptop stands and phone cases incorporate carbon fiber for its durability, lightness, and aesthetic appeal.
• High-End Headphones: The use of carbon fiber in headphone construction enhances sound quality and reduces weight for comfort, particularly in high-end, professional-grade models.

8. Sector de la energía

• Wind Turbine Blades: Carbon fiber composites are used in the production of wind turbine blades due to their ability to withstand stress and provide high strength-to-weight ratios, helping improve efficiency and longevity.
• Oil and Gas Industry: Carbon fiber sheets are used in some oil and gas applications for pipes and pressure vessels, as they offer high resistance to corrosion, reducing the need for maintenance in harsh environments.

9. Productos sanitarios

• Prosthetics and Orthotics: Carbon fiber is increasingly used to create lightweight and durable prosthetic limbs and orthotic devices. Its strength, low weight, and ability to be customized make it ideal for these applications.
• Medical Equipment: Carbon fiber sheets are used in medical equipment such as X-ray tables, surgical tools, and patient supports. The material is lightweight, non-corrosive, and radiolucent, allowing X-rays and other imaging to pass through without interference.

10. Robótica

• Robot Frames: Carbon fiber is used to construct the frames and structures of robots, particularly those designed for high-precision work in industries like aerospace or medical surgery. The lightweight yet strong material allows for greater efficiency and durability.
• Arm and Leg Components: Carbon fiber is also used in the robotic arms and legs of advanced manufacturing robots due to its stiffness and resistance to wear.

11. Fashion and Luxury Goods

• Watches: Luxury watch brands sometimes use carbon fiber in their watch cases to create a unique aesthetic while maintaining the durability of the watch.
• Accessories: Carbon fiber is used in premium accessories such as wallets, belts, and bags, where the material’s lightweight and sleek look provide both practical and visual appeal.

12. Customization and DIY Projects

• Custom Car Parts: Car enthusiasts and DIY builders often use carbon fiber sheets to fabricate custom parts such as spoilers, hoods, and mirrors to improve vehicle performance and appearance.
• DIY Projects: Hobbyists use carbon fiber sheets for various custom projects, from model making to prototyping and creating lightweight, high-strength components for various applications.

Yes, carbon fiber sheets are highly resistant to both heat and chemicals, but the level of resistance can depend on the specific type of carbon fiber, the matrix material used (in composite structures), and the conditions of exposure. Below is a comprehensive and detailed overview of carbon fiber’s resistance to heat and chemicals, including factors that influence its performance.

1. Heat Resistance of Carbon Fiber Sheets

Carbon fiber is known for its excellent heat resistance, especially in comparison to metals like steel and aluminum. However, the resistance to heat varies depending on the type of carbon fiber (e.g., high-modulus vs. standard-modulus) and its application (e.g., raw carbon fiber vs. carbon fiber composites). Here are key points to consider:

Temperature Resistance

• Carbon Fiber Itself:

• Maximum Operating Temperature: Raw carbon fiber can withstand temperatures up to 3,000°C (5,432°F)in an inert atmosphere (such as vacuum or argon). In real-world conditions, though, carbon fiber is usually exposed to much lower temperatures.
• Typical Operating Range: For most applications, carbon fiber composites can handle temperatures up to 200°C to 300°C (392°F to 572°F), with some specially designed variants capable of going beyond 500°C (932°F).
• Decomposition Temperature: When exposed to air, carbon fiber starts to degrade at about 400°C (752°F)due to oxidation. This makes carbon fiber vulnerable to high temperatures in oxidizing environments (e.g., exposed to oxygen at high heat).

Effect of Heat on Carbon Fiber Composites:

• Matrix Material Impact: Carbon fiber composites are made by combining carbon fibers with a resin matrix (typically epoxy, polyester, or phenolic). The resin matrixplays a crucial role in heat resistance:

• Epoxy Resin: Commonly used in carbon fiber composites, epoxy resin typically starts to degrade around 150°C to 250°C (302°F to 482°F). The resin’s degradation limits the heat resistance of the composite.
• Phenolic Resin: Used for high-temperature applications, phenolic resin can withstand temperatures up to 400°C (752°F).
• Polyimide Resin: For extreme heat applications, polyimide resins can be used, allowing the composite to withstand temperatures up to 500°C (932°F)or higher.

Thermal Conductivity:

• Low Thermal Conductivity: Carbon fiber has low thermal conductivity compared to metals, meaning it does not easily transfer heat. This is beneficial in applications requiring thermal insulation (e.g., in aerospace or high-performance vehicles).

Summary of Heat Resistance:

• High resistance to heat(up to 3,000°C in inert environments, but around 200-500°C in practical applications).
• Sensitive to oxidationat temperatures above 400°C, reducing its effectiveness in oxidizing environments.
• Composite performance: Depends heavily on the type of resin used (epoxy, phenolic, polyimide) and the specific fiber structure.

2. Chemical Resistance of Carbon Fiber Sheets

Carbon fiber is known for its excellent chemical resistance, particularly when compared to metals and polymers. However, the extent of chemical resistance depends on factors like the type of chemical, concentrationy exposure duration. Carbon fiber sheets offer high resistance to many chemicals, but there are some conditions and limitations to consider.

Chemical Resistance Characteristics:

• Acids:

• Carbon fiber is generally resistant to acids, particularly inorganic acidslike sulfuric acid (H₂SO₄), hydrochloric acid (HCl)y nitric acid (HNO₃) in diluted forms.
• Concentrated acidscan still attack the resin matrix (especially if it’s an epoxy or polyester), but the carbon fibers themselves remain largely unaffected.
• Organic acids(e.g., acetic acid) might have some effect depending on the matrix material.
  • Bases (Alkaline Solutions):
• Carbon fiber is generally resistant to alkaline solutions(e.g., sodium hydroxide or potassium hydroxide) up to concentrations of about 50%. However, prolonged exposure to highly concentrated bases can cause degradation of the resin matrix in composites.
  • Solvents:
• Carbon fiber exhibits good resistance to many organic solvents, including oils, greases, and fuels.
• Solvent resistancedepends largely on the type of resin used. Epoxy resins, for example, perform well against most hydrocarbon solvents, but exposure to polar solvents like acetone or ethanol could weaken the matrix over time.
  • Saltwater:
• Marine environmentsdo not significantly affect the carbon fiber itself, but corrosion of the matrix material (especially if it’s not properly sealed) can still occur.
• Carbon fiber composites are often used in marine applications(e.g., boat hulls, racing yachts) because they resist corrosion from seawater.

Chemical Resistance of Resin Matrix:

• The resin matrixsignificantly influences the chemical resistance of carbon fiber sheets:

• Epoxy Resins: Provide excellent resistance to most chemicals but are susceptible to attack by strong acids, basesy polar solvents.
• Phenolic Resins: Highly resistant to high-temperature environments and many chemicals, including strong acidsy organic solvents.
• Polyimide Resins: Known for excellent chemical and heat resistance, often used in extreme environments where exposure to both heat and aggressive chemicals is expected.

Resistencia a la corrosión:

• Carbon fiber itself is non-corrosive, unlike metals (e.g., steel, aluminum) that are prone to rusting or corrosion. This makes carbon fiber a preferred material for applications in corrosive environments, such as chemical plantsor marine structures.

Summary of Chemical Resistance:

• Excellent resistance to many chemicals, including most acids, bases, and organic solvents.
• Matrix materialaffects the chemical resistance: epoxy resins are susceptible to polar solvents and concentrated acids/bases, while phenolic and polyimide resins offer better chemical resistance.
• Highly resistant to saltwater and corrosion, making it ideal for marine applications.
• Carbon fiber compositesmay experience matrix degradation when exposed to certain chemicals (e.g., concentrated acids or bases) over extended periods.

3. Practical Considerations for Heat and Chemical Resistance

• Heat Resistance: Carbon fiber composites can be used in environments with high heat, but careful attention must be paid to the resin matrix. In some cases, specialty high-temperature resins (e.g., polyimide or phenolic resins) are required to achieve the desired heat resistance.
• Chemical Resistance: While carbon fiber sheets provide good chemical resistance, it’s essential to consider the exposure conditions, such as chemical concentration, temperature, and duration. In harsh environments, selecting the right resin matrix (such as phenolic or polyimide) is critical for ensuring longevity.

Conclusion:

Carbon fiber sheets offer exceptional heat and chemical resistance that makes them ideal for high-performance and harsh environments. Here’s a summary of the key points:

• Heat Resistance: Carbon fiber can withstand extremely high temperaturesin inert conditions, but its performance degrades in oxidizing environments at temperatures above 400°C (752°F). The matrix material used in composites (epoxy, phenolic, polyimide) plays a significant role in the overall heat resistance of the final product.
• Chemical Resistance: Carbon fiber has excellent resistance to a broad range of acids, bases, solventsy saltwater, making it highly suitable for use in corrosive environments. The choice of resin matrixis important, as it can influence the composite’s overall chemical resistance.

For applications that require both heat and chemical resistance, carbon fiber composites (particularly those made with high-performance resins) offer an ideal solution, provided proper attention is given to the exposure conditions.

The surface finish of carbon fiber sheets is a key factor in both the aesthetic appearance y performance characteristics of the material. Carbon fiber sheets can be finished in several different ways, each providing a unique set of visual and functional properties. Below is a detailed and comprehensive guide to the various surface finishes available for carbon fiber sheets.

1. Glossy Finish

• Descripción: A glossy finishgives the carbon fiber sheet a high-shine, smooth surface that enhances the material’s visual appeal. This finish is often sought after in high-performance products where aesthetic appeal is important, such as in luxury vehicles or consumer electronics.
• How it’s achieved: A glossy finish is usually achieved through the use of clear coatingor polyurethane or epoxy resin that is applied to the surface. After the resin cures, the surface is polished to a high gloss.
• Pros:

• Premium appearancewith a shiny, reflective surface.
• Enhanced protection against UV rays and environmental factors when coated.
• Easier to clean due to smoothness.
  • Cons:
• More prone to showing scratches and imperfections.
• Can be more slipperydepending on the resin used.

2. Matte Finish

• Descripción: A matte finishhas a non-reflective, satin-like surface that provides a more subtle, understated look. Matte finishes are ideal for applications where a more industrial or modern appearance is desired, or in situations where glare reduction is a priority.
• How it’s achieved: Matte finishes are typically obtained by either using matte resinsor applying a matte clear coat to the carbon fiber sheet after it has been manufactured.
• Pros:

• Non-glaresurface makes it ideal for certain engineering or aesthetic applications (e.g., aerospace, automotive).
• Hides scratches and dirt better than glossy finishes.
• Often preferred for militaryor sports
  • Cons:
• Can appear less polished or “finished” compared to glossy finishes.
• May require more maintenance to keep clean.

3. 2×2 Twill Weave Finish

• Descripción: This is one of the most common and recognizable weave patternsin carbon fiber sheets. The 2×2 twill weave refers to a pattern where each fiber alternates in a diagonal pattern, creating a distinct checkerboard-like appearance.
• How it’s achieved: This finish is created during the weaving processof the carbon fibers before they are impregnated with resin. The fibers are woven in a specific pattern, and the finish is typically clear-coated or polished to enhance the weave.
• Pros:

• Aesthetic appeal: The distinct pattern is highly sought after for its unique, high-end look.
• Strength: The 2×2 weave offers enhanced strength and durabilitycompared to plain weaves because it distributes stress more evenly across the sheet.
  • Cons:
• The weave itself can make the surface feel slightly roughercompared to plain or glossy finishes.

4. Plain Weave Finish

• Descripción: The plain weavefinish results in a very tight, crisscross pattern where each fiber alternates 90° at a 1:1 ratio, producing a smooth, flat surface. This finish is commonly used for more functional, industrial applications.
• How it’s achieved: Plain weave is achieved by alternating fibersin a 1×1 fashion during the weaving process, resulting in a checkerboard pattern that is less pronounced than the twill weave.
• Pros:

• Uniform surfaceprovides good mechanical properties, often used for strength.
• Easier to clean and maintain due to its smooth surface.
• Generally more cost-effectivecompared to other finishes.
  • Cons:
• Not as visually striking as a twill weave.
• Can have lower impact resistancecompared to other weaves in certain applications.

5. 3K, 6K, 12K, and Other Fiber Counts

• Descripción: The fiber count(3K, 6K, 12K) refers to the number of individual carbon fibers grouped together into a single bundle (called a tow). A higher K number indicates a thicker and more robust bundle, which results in a stronger and more dense finish.
• How it’s achieved: The fiber count is determined during the manufacturing of the carbon fiber tow. The choice of fiber count affects the appearance of the final sheet.
• Pros:

• Higher K-count fibersgenerally provide stronger and stiffer material and are often used in high-performance applications.
• The appearancecan range from fine, tightly woven fabrics to more pronounced patterns depending on the K-count used.
  • Cons:
• Higher fiber counts can result in a rougher surface textureand increased peso for certain applications.
• Higher counts may increase costfor materials.

6. Textured or 3D Carbon Fiber Finish

• Descripción: Textured finishesinvolve creating a three-dimensional pattern or a rough texture on the surface of the carbon fiber. These textures can vary from dimples to grid-like patterns, and they are often used for added aesthetic appeal or specific functional characteristics, such as increased friction.
• How it’s achieved: Textured finishes can be created by embedding fibers with different patternsor by creating raised areas using molding techniques or 3D printing
• Pros:

• Provides a unique appearance, often used in high-end or custom products.
• Can improve gripor friction for parts that require handling or aerodynamic applications.
  • Cons:
• Difficult to cleanbecause the texture can trap dirt or debris.
• May require additional finishing steps to ensure durability.

7. Pre-Preg Carbon Fiber Finish

• Descripción: Pre-pregrefers to carbon fiber that has been pre-impregnated with resin, which is then cured under heat and pressure. The finish is often highly smooth and uniform, especially after high-pressure molding or autoclaving
• How it’s achieved: Pre-preg carbon fiber sheets are laid up with resin-impregnated fibers, which are then pressed or molded to create a uniform, glossy or matte surface finish.
• Pros:

• High strength-to-weight ratio.
• Can achieve a smooth, consistent finishthat is ideal for high-performance and high-aesthetic applications (e.g., in aerospace, automotive, or sporting goods).
  • Cons:
• The production process is more time-consumingy expensive than other carbon fiber manufacturing methods.

8. Clear-Coated Carbon Fiber

• Descripción: In this finish, a clear coat(often polyurethane or epoxy-based) is applied over the carbon fiber, protecting the material and providing a glossy or satin look that enhances the appearance of the woven carbon fibers beneath.
• How it’s achieved: The carbon fiber is laid up in the usual pattern (plain, twill, or other weave), and after curing, a clear coat is applied and polished.
• Pros:

• Provides a shiney depth to the carbon fiber weave, enhancing its visual appeal.
• Protects the carbon fiber from UV damagey environmental factors.
  • Cons:
• Clear coats can yellowor deteriorate over time due to prolonged UV exposure.
• More maintenance required to preserve appearance.

9. UV-Resistant Coating

• Descripción: UV-resistant coatingsare specifically designed to protect carbon fiber from UV degradation y yellowing. This type of finish is particularly important in applications where the material is exposed to direct sunlight.
• How it’s achieved: A UV-resistant layeris typically applied over the carbon fiber sheet, offering long-term protection against sun exposure and oxidation.
• Pros:

• Prevents UV damagey yellowing of the material, prolonging its lifespan.
• Maintains the aesthetic integrityof the carbon fiber for years.
  • Cons:
• UV-resistant coatings can sometimes alter the appearanceslightly, giving it a matte or satin finish.

Yes, carbon fiber sheets can definitely be used for structural applications, and in fact, they are highly valued in many industries for their strength, light weighty stiffness. The ability of carbon fiber to be tailored in terms of thickness, fiber orientationy resin systems makes it versatile for various structural uses. Below is a comprehensive breakdown of why and how carbon fiber sheets are used in structural applications.

1. Why Carbon Fiber Sheets Are Suitable for Structural Applications

• High Strength-to-Weight Ratio:

• One of the key reasons carbon fiber is used for structural components is its exceptional strength-to-weight ratio. Carbon fiber is much stronger than steel when compared at the same weight, making it ideal for applications where strength is needed but reducing the overall weight is also critical, such as in aerospace, automotivey sports equipment.
  • Stiffness and Rigidity:
• Carbon fiber offers a high degree of stiffness. Structural components made from carbon fiber sheets resist deformation and bending under load, making it ideal for applications that require high structural integrityy load-bearing capabilities. Carbon fiber’s stiffness is often higher than that of metals like aluminum, making it a strong alternative when the goal is to minimize flex while maintaining a light weight.
  • Fatigue Resistance:
• Carbon fiber is known for its resilience to fatigue. This means that in applications where parts are repeatedly stressed, carbon fiber sheets can endure high levels of stress without weakening over time, which is critical for aerospace, automotivey marine structures.
  • Resistencia a la corrosión:
• Unlike metals, carbon fiber does not corrode or rust. This makes carbon fiber particularly suitable for marine environments, outdoor applications, and parts that are exposed to moisture or chemicals. The material’s inherent chemical resistanceallows it to withstand harsh environments, making it ideal for structural components that need durability.

2. Common Structural Applications of Carbon Fiber Sheets

a. Industria aeroespacial:

• Aircraft Wings and Fuselages: Carbon fiber is widely used for the wings, fuselagesy tail sectionsof aircraft. Its light weight and high strength allow aircraft to achieve better fuel efficiency y performance while maintaining structural integrity.
• Satellites and Spacecraft: Carbon fiber sheets are used in satellite structures, rocket componentsy spacecraft panelsto minimize weight while providing the strength needed to endure the high-stress conditions of space travel.
• Benefits: Enhanced fuel efficiency, reduced weighty increased strength.

b. Industria del automóvil:

• Chassis and Body Panels: Carbon fiber sheets are commonly used in high-performance sports carsy luxury vehicles for body panels, chassis reinforcement, floorboardsy structural frames. The use of carbon fiber can significantly reduce the vehicle’s peso, enhancing speed and fuel efficiency without compromising safety.
• Crash Structures: In motorsports (e.g., Formula 1), carbon fiber is used in crash structuresy safety cells to protect the driver while maintaining a lightweight structure.
• Benefits: Reduced peso, enhanced performance, and improved safety.

c. Industria de la construcción:

• Reinforcement of Concrete: Carbon fiber sheets are used to reinforce concretestructures such as bridges, buildingsy foundations. Carbon fiber sheets are used in structural retrofitting to increase the strength and load-bearing capacity of older concrete structures without the need for significant changes to the existing design.
• Carbon Fiber Reinforced Polymers (CFRP): Carbon fiber sheets are also used as part of CFRP laminatesfor reinforcing structural elements like beams y columns. This helps in reducing the structural weight while increasing the strength y flexural resistance.
• Benefits: Increased strength, stabilityy durabilityfor aged or weakened concrete structures.

d. Marine Industry:

• Boat Hulls and Decks: Carbon fiber sheets are used in the construction of lightweight, strong boat hullsy deck structures in the marine industry, including yachts, racing boatsy military vessels. The corrosion resistance of carbon fiber makes it especially valuable in the marine environment.
• Masts and Rigging: Carbon fiber is also used for the mastsy rigging of high-performance sailing yachts, where reduced weight and increased strength are crucial for improving sailing performance.
• Benefits: Corrosion resistance, high strengthy low weight.

e. Equipamiento deportivo:

• Bicycles: Carbon fiber is widely used in bicycle framesy components due to its lightweight y stiffness, making the bikes faster and more responsive while reducing the overall weight of the frame.
• Tennis Rackets, Golf Clubs, and Ski Poles: The lightnessy strength of carbon fiber are harnessed to make high-performance sports equipment, providing durability while maintaining agility and flexibility.
• Benefits: Enhanced performance, durabilityy strengthin lightweight components.

3. Advantages of Using Carbon Fiber Sheets for Structural Applications

• High Strength: Carbon fiber can be engineered to provide the necessary strengthfor a wide range of structural applications. The material is known for being stronger than steel at the same weight, making it an excellent choice when weight reduction is crucial but strength is non-negotiable.
• Peso ligero: Carbon fiber sheets are significantly lighter than metals such as steelor aluminum, which is why they are so widely used in industries like aerospace and automotive where minimizing peso leads to improved fuel efficiency y speed.
• Flexibility in Design: Carbon fiber sheets can be tailored to suit a wide variety of structural applications. The fiber orientationcan be customized (e.g., unidirectional, woven fabrics, or hybrid orientations) to optimize strength in specific directions, making it highly versatile for complex shapes y designs.
• Durability: Carbon fiber is highly resistant to fatigue, corrosion, UV degradationy chemical exposure, making it ideal for applications where longevityy resilience are essential. For example, carbon fiber is used in marine environments to prevent corrosion in saltwater.
• Reduced Maintenance: Because carbon fiber doesn’t rust or corrode, structures made from carbon fiber require less maintenancecompared to traditional materials like steel or aluminum.

4. Challenges of Using Carbon Fiber Sheets for Structural Applications

• Cost: Carbon fiber is generally more expensive than metals like steelor aluminum, which may limit its use in some cost-sensitive structural applications. The production processes, especially for high-quality pre-preg carbon fiber, are labor-intensive and costly.
• Complex Manufacturing Process: The manufacturing process for carbon fiber, including lay-up, moldingy curing, requires careful handling and expertise. Additionally, it may not be as easy to cutor machine as metals, so specialized tools and techniques are required.
• Brittleness: While carbon fiber is extremely strong, it can be brittlein some cases, meaning that it may fracture or fail suddenly under certain conditions (especially in the thinner sheets or poorly designed parts). This contrasts with metals like steel, which deform under stress, giving more visible signs of wear before failure.

5. How to Ensure Carbon Fiber Sheets Are Suitable for Structural Applications

• Proper Engineering: Proper designy engineering are essential to ensure carbon fiber performs as expected in structural applications. Finite Element Analysis (FEA) can be used to model the behavior of carbon fiber structures under stress and optimize the design for maximum strength and durability.
• Control de calidad: Ensuring quality controlduring production and manufacturing is key. Carbon fiber sheets should be manufactured using high-quality materials and consistent processes to avoid defects and ensure the desired performance characteristics.
• Layering and Orientation: The number of layersy fiber orientation should be carefully chosen to optimize strength in the necessary directions. For example, unidirectional carbon fiber is great for load-bearing applications where strength in one direction is crucial, while woven fabrics offer better strength in multiple directions.

Storing and maintaining carbon fiber sheets properly is essential to preserve their strength, appearance, and longevity. Here’s a comprehensive guide on how to do both effectively:

Storage of Carbon Fiber Sheets

1. Keep Them in a Dry, Cool Environment

• Ideal Temperature: Carbon fiber sheets should be stored in a cool, dry place. The temperature should ideally range between 15°C to 25°C (59°F to 77°F). Extreme heat or cold can degrade the resin that binds the carbon fibers and may affect the material’s integrity.
• Avoid Humidity: High humidity can compromise the resin, especially if it has not been fully cured. Carbon fiber should be stored in a low-humidity environmentto avoid moisture absorption, which could weaken the material over time.
  2. Protect From UV Exposure
• Avoid Direct Sunlight: UV rays can degrade the resin matrix and cause the carbon fiber sheets to become brittle over time. To prevent this, store the sheets away from direct sunlight. Ideally, store them in an enclosed area or in a protective cover that shields them from UV rays.
• Use UV-Protective Covers: If you have to store carbon fiber sheets outdoors, use UV-resistant coversor place them in a storage container with UV-protective coatings.
  3. Keep Them Away From Chemicals
• Avoid Contact With Solvents: Certain chemicals and solvents can damage the resin that holds the carbon fibers together. Store carbon fiber sheets away from chemicals like acetone, paint thinner, and other aggressive cleaning agents.
• No Contact With Fuel or Oils: Carbon fiber may be resistant to many chemicals, but long-term exposure to oils or fuels can degrade the resin or cause stains. Avoid placing the sheets near petroleum-based products.
  4. Store in a Flat Position
• Avoid Bending or Warping: Carbon fiber sheets are strong but can be vulnerable to bending or warping if not stored properly. Store the sheets flaton a solid surface, such as a shelf or rack, to avoid any deformation. You can also store them vertically if they are well-supported along their edges, but ensure they aren’t subject to any flexing or stress.
  5. Use Protective Covers or Wrapping
• Protect the Surface: Carbon fiber sheets often have a smooth, glossy surface. To avoid scratches or damage, it’s best to wrap them in protective materialssuch as bubble wrap or a soft cloth. This is especially important if the sheets are stored near other materials or items that might scratch the surface.
  6. Avoid Storing on Concrete Floors
• Avoid Contact with Cold Concrete: Storing carbon fiber sheets directly on cold, hard concrete floors can expose them to temperature fluctuations and moisture. This can potentially lead to condensation and affect the resin. If you need to store them on the floor, consider placing them on a raised surface like a wooden pallet.

Maintenance of Carbon Fiber Sheets

1. Regular Cleaning

• Use Mild Cleaning Solutions: To clean carbon fiber sheets, avoid abrasive cleaners. Instead, use a mild soap solution or pH-balanced cleaneralong with a soft microfiber cloth or sponge. Wipe the surface gently to remove dirt, dust, or stains.
• Avoid Abrasive Materials: Never use abrasive cloths, steel wool, or harsh scrubbers, as these can scratch or damage the surface of the carbon fiber.
• Rinse with Water: After cleaning, rinse the carbon fiber sheets with clean water to remove any soap residue, then dry them immediately using a soft, lint-free cloth.
  2. Inspect for Damage
• Check for Cracks or Delamination: Regularly inspect the sheets for any visible cracks, chips, or signs of delamination (separation of layers). If you notice any of these issues, it’s important to address them promptly to prevent further damage.
• Inspect Protective Coatings: If the carbon fiber sheets are coated with a protective resin or clear coat, make sure to inspect the coating regularly for signs of wear. If the protective layer is damaged or worn off, the carbon fiber may be vulnerable to UV damage, moisture, or other environmental factors.
  3. Reapply Protective Coatings if Necessary
• UV Coating: Over time, the UV-protective coating on carbon fiber sheets may wear off due to exposure to sunlight and environmental conditions. If you’re storing carbon fiber outdoors or in environments with high UV exposure, reapply a UV-resistant coatingperiodically to protect the material.
• Wax or Clear Coat: Applying a thin layer of car wax or a clear protective coat can help preserve the appearance of the carbon fiber sheets and maintain their glossy finish. This can also protect against minor scratches and dirt buildup.
  4. Avoid Impact and Physical Stress
• Avoid Dropping or Impacting: Carbon fiber sheets are strong but brittle under impact. They can crack or shatter if dropped or struck with enough force. Handle them carefully, and use soft, padded materials(such as foam or soft cloths) when transporting or moving them.
• Prevent Bending: While carbon fiber is strong in tension, it can break or delaminate if subjected to excessive bending. Always store or transport the sheets in a way that minimizes flexing.
  5. Ensure Proper Curing (for Newly Manufactured Sheets)
• Full Resin Cure: If you’re working with carbon fiber sheets that have been recently manufactured or cured, ensure that they’ve fully cured before use or storage. If the sheets are still in a “green” state (not fully hardened), they may be more susceptible to damage. Follow the manufacturer’s guidelines for curing times and conditions.
  6. Long-Term Storage
• Use Protective Storage Conditions: If you need to store carbon fiber sheets for an extended period, ensure they are kept in optimal conditions—cool, dry, UV-protected, and flat. Consider using a storage case or container with cushioning to minimize physical stress.
• Regular Inspections: Even during long-term storage, it’s a good idea to periodically check the sheets for signs of damage, delamination, or degradation. If they’ve been stored in a protective case, you can reduce the frequency of these checks.

Using carbon fiber sheets instead of traditional materials (such as steel, aluminum, wood, or plastic) offers several distinct advantages, especially in applications where performance, weight, and durability are key considerations. Below is a comprehensive breakdown of the benefits of carbon fiber sheets:

1. Lightweight

• Benefit: Carbon fiber has an exceptional strength-to-weight ratio, making it much lighter than metals like steel or aluminum. This means you can achieve the same or greater structural strength with less material.
• Aplicación: The lightweight nature of carbon fiber is especially useful in industries such as aerospace, automotive, sports equipmenty marine, where reducing weight is crucial for improving performance, fuel efficiency, or handling.

2. High Strength and Stiffness

• Benefit: Carbon fiber is incredibly strongy stiff for its weight. It’s much stronger than aluminum or steel in terms of specific strength (strength relative to weight) and can withstand high stresses without significant deformation.
• Aplicación: Carbon fiber sheets are used in high-performance structures, such as in aircraft fuselages, high-speed cars, and bicycles, where strength is needed without adding weight.

3. Durability and Longevity

• Benefit: Carbon fiber is highly resistant to corrosion, unlike metals such as steel, which are prone to rust, or aluminum, which can suffer from oxidation. Carbon fiber will not degrade in harsh environments (e.g., exposure to water, salt, and humidity).
• Aplicación: This resistance makes carbon fiber ideal for marine environments, automotive partsy outdoor equipmentwhere durability and longevity are essential.

4. Fatigue Resistance

• Benefit: Carbon fiber is more resistant to fatiguecompared to metals. This means it can endure repeated stress cycles without significant degradation or failure, which is a common issue with materials like aluminum or steel, which weaken over time with repeated loading.
• Aplicación: In aviation, automotivey sports equipment, parts subjected to frequent stress (like wings, chassis, and frames) benefit greatly from carbon fiber’s fatigue resistance.

5. High Performance in Extreme Temperatures

• Benefit: Carbon fiber can handle extreme temperatures, both high and low, without losing its strength or stiffness. Typically, carbon fiber can operate effectively from -40°C to 120°C (-40°F to 250°F), and certain grades of carbon fiber can withstand even higher temperatures if paired with specialized resins.
• Aplicación: This makes carbon fiber useful in aerospacey automotive applications, especially in high-performance vehicles, engines, or heat shields, where high-temperature resistance is critical.

6. Design Flexibility

• Benefit: Carbon fiber sheets can be molded into complex shapes due to the flexibility of the material during the manufacturing process. This allows for greater design freedom compared to traditional materials like metals, which often require more complex and expensive manufacturing processes like machining or welding.
• Aplicación: This is especially beneficial in aerospace, automotivey consumer products, where aerodynamics or intricate, lightweight designs are essential.

7. Vibration Damping

• Benefit: Carbon fiber has inherent properties that can help in vibration damping. It absorbs and reduces vibrations, which is particularly beneficial in applications where high vibration might cause damage or reduce comfort, such as in race cars, aircrafty high-performance sports equipment.
• Aplicación: This makes carbon fiber popular for automotive partslike chassis, suspension components, or handlebars on bikes and sports equipment like golf clubs y tennis rackets.

8. Aesthetic Appeal

• Benefit: Carbon fiber has a distinctive, high-tech appearancethat is often desired in consumer products. Its woven pattern can be exposed for a sleek, modern, and high-end look.
• Aplicación: This makes carbon fiber particularly attractive for luxury automotive interiors, sporting goodsy consumer electronics(e.g., laptop covers or phone cases), where appearance is as important as performance.

9. Resistance to Electrical and Thermal Conductivity

• Benefit: While carbon fiber can be conductive, it can be designed to be non-conductivein certain applications. Additionally, its thermal conductivity is lower than metals like aluminum, which can be advantageous in situations where thermal insulation is needed.
• Aplicación: Carbon fiber is used in electromagnetic shielding, ESD protectiony thermal barriersin applications such as electronics or aerospace.

10. Reduced Maintenance

• Benefit: Due to its resistance to corrosion, wear, and fatigue, carbon fiber often requires less maintenancethan traditional materials like metal. It doesn’t rust or degrade over time, reducing the need for regular repairs or replacements.
• Aplicación: This benefit is particularly important in outdoory marine applications where materials are exposed to the elements.

11. Improved Safety

• Benefit: The impact resistanceof carbon fiber is often superior to materials like aluminum or steel in specific applications, such as helmets, car body panels, and sports gear. In the event of an impact, carbon fiber tends to absorb and distribute the force more efficiently.
• Aplicación: This makes carbon fiber particularly beneficial for safety-criticalcomponents, such as automotive crash structures, motorcycle helmetsy sports equipment like kayaks or snowboards.

12. Environmental Impact

• Benefit: While manufacturing carbon fiber is energy-intensive, its longevity and lightweight properties can help reduce overall energy consumption in long-term applications, such as transportationy aerospace.
• Aplicación: Over the lifetime of products like electric vehiclesor aircraft, the reduced weight from carbon fiber contributes to lower fuel consumption, potentially decreasing their carbon footprint.

13. High Customizability

• Benefit: Carbon fiber sheets can be tailored to specific performance requirements by adjusting the fiber orientation, resin system, or number of plies. This level of customization allows manufacturers to optimize the material for specific loads, stress factors, and environmental conditions.
• Aplicación: Aeroespacial, automotivey constructionindustries often use custom-made carbon fiber products to meet specific design and performance criteria.
