Fiberglass Mat and Fiberglass Cloth are both used to reinforce composite materials, but they differ significantly in structure and application. Understanding these differences can help us choose the most suitable material for various needs.
A fiberglass mat is a material made from strands of glass fibers that are randomly arranged and bonded together. It’s often used in a variety of industries, including construction, automotive, marine, and even for making insulation products. The mat is typically used as a reinforcement material for composite products, where it enhances the strength and durability of the finished product.
Here are a few key characteristics and uses of fiberglass mats:
Made of glass fibers, which are fine strands of glass, bound together in a random pattern. These mats can be made in a continuous filament form or chopped strand form. The fibers are often coated with a resin to help with bonding when used in composite materials.

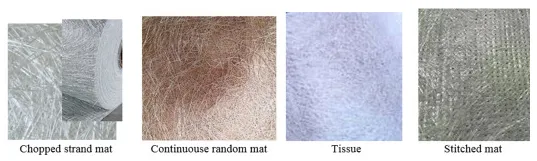

Chopped Strand Mat (CSM): Made of short fibers randomly oriented and bonded together. It’s often used in hand lay-up applications, like in the production of boat hulls or automotive parts.
Woven Roving Mat: Made of continuous fibers that are woven together in a fabric form. It’s used in high-performance composite materials like in the aerospace or automotive industries.
Needle-punched Mat: The fibers are mechanically entangled to form a fabric-like structure. This type of mat is often used for insulation or reinforcement.
Reinforcement in Composites: Fiberglass mats are commonly used in the production of composite materials, where they are combined with resins (like polyester or epoxy) to create strong, lightweight materials for things like boats, automotive parts, or even construction components.
Insulation: Fiberglass mats can serve as an insulation material in both residential and commercial construction. They help with thermal and sound insulation.
Automotive Parts: Fiberglass mats are often used in the manufacturing of automotive body parts and other components due to their strength, light weight, and corrosion resistance.
Roofing: In construction, fiberglass mats are used in certain types of roofing products, such as shingles, for added strength and durability.
Lightweight: Fiberglass mats are much lighter than metal alternatives, which makes them ideal for applications where weight is a concern (e.g., in vehicles or boats).
Durability: They resist corrosion and degradation from environmental factors like moisture, which is why they’re used in many outdoor and marine environments.
Cost-Effective: Fiberglass is generally less expensive than other reinforcement materials like carbon fiber, making it a good choice for budget-conscious applications.
Fiberglass cloth is a fabric made from woven strands of glass fibers. Like fiberglass mats, it is used for reinforcing composite materials, but it differs primarily in its form and structure. Instead of random strands, fiberglass cloth consists of continuous threads that are woven into a fabric, which makes it suitable for applications that require a smooth surface finish and high tensile strength.
Here are a few key characteristics and uses of fiberglass cloth:

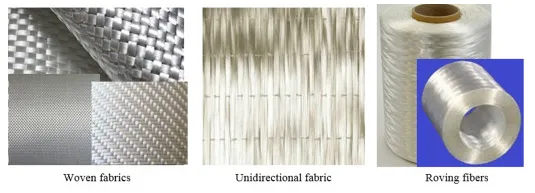

Made from glass fibers, which are drawn into fine strands. These strands are woven into various patterns (usually a plain weave, but can be other types like twill or satin) to form a fabric-like material.
Plain Weave: This is the most common weave, where fibers are alternated in a simple over-under pattern, creating a tight, uniform structure.
Twill Weave: A pattern that results in diagonal lines on the surface, offering a more flexible cloth.
Satin Weave: A weave that allows more flexibility and is generally used when a smoother surface finish is needed.
Unidirectional: The fibers are aligned in one direction only, which provides strength in a single direction (commonly used for structural reinforcement).
Boat Building: Fiberglass cloth is widely used in boat construction to create strong, lightweight hulls. It is used in conjunction with resins (such as epoxy or polyester) to form a solid, rigid composite material.
Automotive Parts: Used in the production of body panels and other automotive components, where it provides both strength and a smooth finish.
Aerospace: In the aerospace industry, fiberglass cloth is used to reinforce materials in aircraft or spacecraft due to its lightweight yet durable properties.
Electrical Insulation: Fiberglass cloth is an excellent insulator, so it’s often used for insulating wires, cables, and electrical components.
High Strength-to-Weight Ratio: The material is very strong relative to its weight, making it ideal for lightweight but durable applications.
Corrosion Resistance: It doesn’t rust or degrade when exposed to moisture, so it’s perfect for marine and outdoor environments.
Malleability: When soaked in resin, glass fiber cloth can easily be molded into complex shapes, allowing for versatile applications.
Durability: Fiberglass is tough and resistant to abrasion, which makes it suitable for products that undergo wear and tear.
Both are glass fiber reinforcements, but they act very differently in actual constructions. Mat provides better conformability and bulk. Cloth offers greater strength and a smoother finish. It depends on the shape, load requirements, and finish quality. Check out the table for a quick read.
Fiberglass cloth is woven from continuous yarns into uniform patterns, including plain weave, four-harness satin, and eight-harness satin. They’re not the same. Fiberglass mat, in particular, is not woven; fibers are chopped or needle-punched into a random sheet. Needle-punched mats are without adhesive and can withstand temperatures up to 550°C.
Mat’s open, random structure soaks up more resin, which is heavy and expensive. Watch resin content and employ a resin guidebook to configure resin-to-fiber ratios, particularly if hand lay-up or infusion is new for your team.
Cloth requires less resin to wet out. Parts become lighter at equal thickness and frequently stronger per mass because of fiber continuity.
Fiberglass cloth provides higher tensile and flexural strength because the yarns run continuously in defined directions. Typical tensile is between 300 and 500 MPa. Use it where loads matter: stringers, brackets, panels.
Mat’s random orientation distributes stress more evenly but reduces peak strength on the order of 100–200 MPa. It aids impact resistance in boat hulls and architectural skins.
For structural parts, use cloth. For non-structural bulk or as a core spacer, use mat. Most laminates mix them both to tune thickness, damping, and directional strength.
Mat is more pliant and conforms to tight curves, corners, and compound shapes with fewer wrinkles. It drapes well over fillets and transitions.
Cloth is stiffer, particularly plain or twill, and fits well on flat or gently curved panels. Use fiberglass mat in pockets, radii and tool details. Then flip to cloth on wide fields. Flex varies with weave and grade of fiber. Satins drape better than plains.
Cloth provides a smoother, more consistent surface that sands quickly and accepts paint beautifully. It limits print-through on visible areas.
Mat can leave a rougher profile. You’ll probably require additional sanding or surface veil for clears or gloss finishes. Put cloth as the outside layer for clean aesthetics and mat down underneath where finish is less important.
Mat lays down quickly over big or funky shapes, which accelerates cycles and builds mass. Cloth requires meticulous alignment and smoothing to maintain fiber orientations straight and prevent wrinkles.
Choose mat for fast construction and gap filling, and cloth for clean, accurate work. Differences between fiberglass mat and fiberglass cloth.
Overall, fiberglass mat and fiberglass cloth each have their advantages and are suited for different applications. Choosing the right material depends on specific requirements, such as strength, surface smoothness, or durability. Understanding their differences ensures the best performance for the intended use.
Connect with an NQ expert to discuss your product needs and get started on your project.
Contact NowIs it possible to combine fiberglass mat and fiberglass cloth?
Yes, combining fiberglass mat and fiberglass cloth is not only possible but also common in many applications. Fiberglass mat is typically used for adding bulk and strength, especially in the inner layers of composite materials, while fiberglass cloth is used for the outer layers to provide a smooth, durable finish and increased tensile strength.
Which is more effective for making boats: fiberglass cloth or fiberglass mat?
Both fiberglass cloth and fiberglass mat play important roles in boat building. Fiberglass mat is primarily used for adding strength and bulk, especially in the internal layers of the hull. It is great for structural reinforcement. Fiberglass cloth, on the other hand, is used for the outer layers of the boat because it offers a smoother, more aesthetically pleasing finish.
Can fiberglass mat be utilized for corner and seam reinforcement?
Yes, fiberglass mat is often used for corner and seam reinforcement. Due to its random fiber orientation, fiberglass mat distributes stress evenly across joints and edges, which makes it ideal for reinforcing corners and seams in composite structures like boats, cars, or even in construction. If a smoother finish is needed, fiberglass cloth may be applied over the mat in the outer layers, but the mat itself is excellent for adding strength in these high-stress areas.
What are the uses of Fiberglass Cloth Roll?
Fiberglass cloth rolls are used in:
– Composite materials (like in boats and cars) when combined with resins.
– Boat building for smooth outer layers.
– Repairs to reinforce damaged surfaces.
– Insulation and fireproofing for high-temperature and electrical applications.
