Custom Glass Woven Fabric Manufacturer In China
16+ years of manufacturing experience
CE, ISO, ROHS,SGS and other certifications
Customize different sizes and colors
Custom spun yarn, non twist roving, unidirectional, multi-axial, warp knitting and other reinforced fabrics
OEM&ODM service, door to door service
years
Manufacturing Experience
Projects
We had finished
Clients
Over the world
Satisfaction
FIBER GLASS FABRIC MANUFACTURER
High-End Automatic Jet Or High-Speed Rapier Loom Machinery
Compared to other machines, our equipment offers superior warp and weft weaving effects. Depending on the specific weaving methods for fiberglass fabrics—such as plain, twill, or satin—we select the appropriate type of loom for production. Our factory operates 8 production lines with comprehensive process monitoring, significantly enhancing both production efficiency and product quality.
Multiple Certifications, Strict Quality Control And Testing
As a manufacturer and supplier of fiberglass fabric, we operate our own factory that holds ISO 9001, CE certification, and complies with SGS and ASTM standards. We invite you to visit our factory and inspect our products.
Precise Weight Control, Regular And Precise Weaving
Our fiberglass fabric is tightly woven with a uniform texture, and the entire weaving process is carefully monitored and adjusted using high-precision measuring equipment and automatic control systems. This ensures consistent control over the weight and texture of the fabric, guaranteeing optimal strength and quality.
Professional
Advanced manufacturing technology
High Quality
High quality CE, ASTM, SGS, ISO, BSCI certification
Cost Effective
Direct factory price
Customized
Different sizes, colors, designs, OEM/ODM
Service
Excellent customer service
HOT SELLING FIBERGLASS MESH SERIES
We specialize in producing high-quality, versatile fiberglass fabric known for its exceptional physical properties, including high strength, corrosion resistance, excellent insulation, and strong heat resistance. These qualities make it widely applicable across various industries. In construction, fiberglass fabric is used for insulation and structural reinforcement; in aerospace, it serves as an ideal material for aircraft structures and heat shields; in the automotive industry, it reduces vehicle weight and improves performance; and in electronics, it functions as a circuit board substrate and electromagnetic shielding material, ensuring the stable operation of electronic devices. Additionally, fiberglass fabric is environmentally friendly due to its recyclability. We are dedicated to offering customized fiberglass fabric solutions to meet the diverse needs of different industries and applications.
FIBERGLASS FABRIC BY WEAVING
NQ glass fiber fabric is woven using three main techniques: plain, twill, and satin. Each method has its own unique characteristics, making it suitable for different products. These various weaves provide distinct advantages, allowing fiberglass fabric to meet a wide range of requirements in terms of strength, durability, and appearance.
Plain Weave Fiberglass Cloth
Plain weave fiberglass cloth offers several advantages, including high strength and stability, excellent durability, ease of processing and maintenance, and cost-effectiveness. It is widely used across various industries such as construction, transportation, sports and leisure, and aerospace. Its applications include structural reinforcement, heat insulation, corrosion resistance, filtration, and the production of various components.
Twill Weave Fiberglass Cloth
Twill weave fiberglass cloth offers high strength, excellent wear resistance, good dimensional stability, and an attractive texture and appearance. It is widely used in industries such as construction, sports and leisure, and aerospace. Its applications range from corrosion-resistant and structural reinforcement materials to the manufacturing of outdoor equipment and aircraft components.
Satin Weave Fiberglass Cloth
Satin weave fiberglass cloth boasts a high gloss finish, a soft texture, and strong visual appeal. It is widely used in high-end fashion, home décor, and specialized areas such as stage design and art installations. Its qualities enhance product quality, create a luxurious atmosphere, and produce unique light and shadow effects.

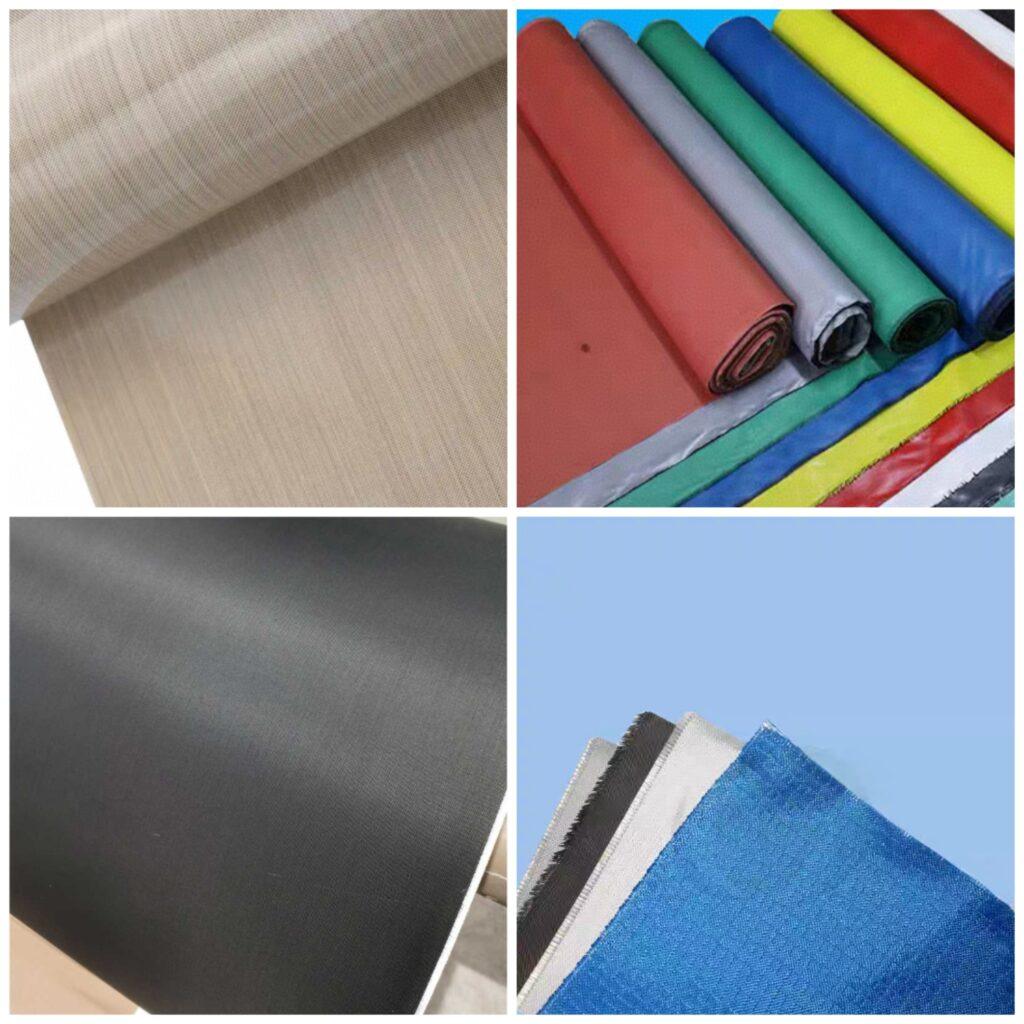

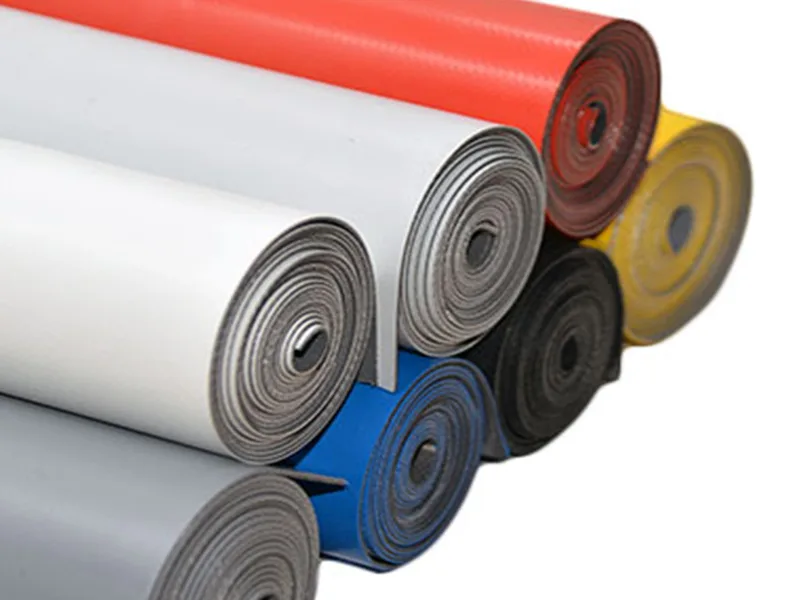

Silicone Coated Fiberglass Fabric
Silicone-coated fiberglass fabric is a composite material made by applying silicone rubber to fiberglass cloth through a specialized process. It offers resistance to extreme temperatures, chemical corrosion, water, abrasion, and aging, while also providing excellent insulation properties. This makes it widely used in industries such as aerospace, chemical processing, and electrical insulation.

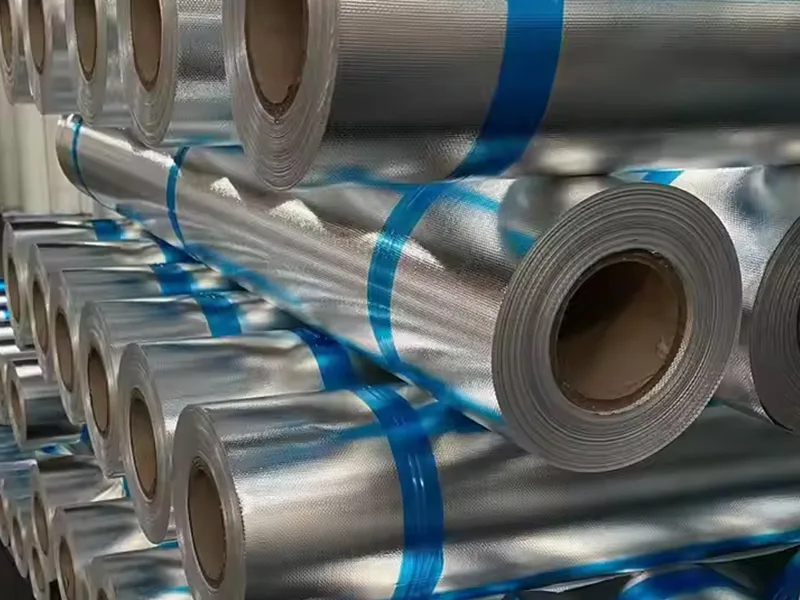

Aluminized Fiberglass Fabric
Aluminized fiberglass fabric is produced by bonding aluminum foil to fiberglass cloth through a specialized process. It offers outstanding thermal insulation, fire resistance, corrosion resistance, and combines lightweight with high strength. This durable and aesthetically appealing material is widely used in construction, aerospace, and other industries.
PU Coated Fiberglass Fabric
PU-coated fiberglass fabric is a high-performance composite material created by evenly applying polyurethane to fiberglass through a specialized process. It boasts excellent resistance to temperature, fire, wear, and water, making it ideal for use in construction, aerospace, transportation, and other industries.
PVC Coated Fiberglass Fabric
PVC-coated fiberglass fabric, also known as polyvinyl chloride-coated fiberglass cloth, is a high-performance composite material that combines the strength of fiberglass with the protective properties of PVC. Through a specialized process, it gains features such as waterproofing, flame resistance, corrosion resistance, and durability against aging. This makes it widely used in construction, transportation, shading, and other industries.

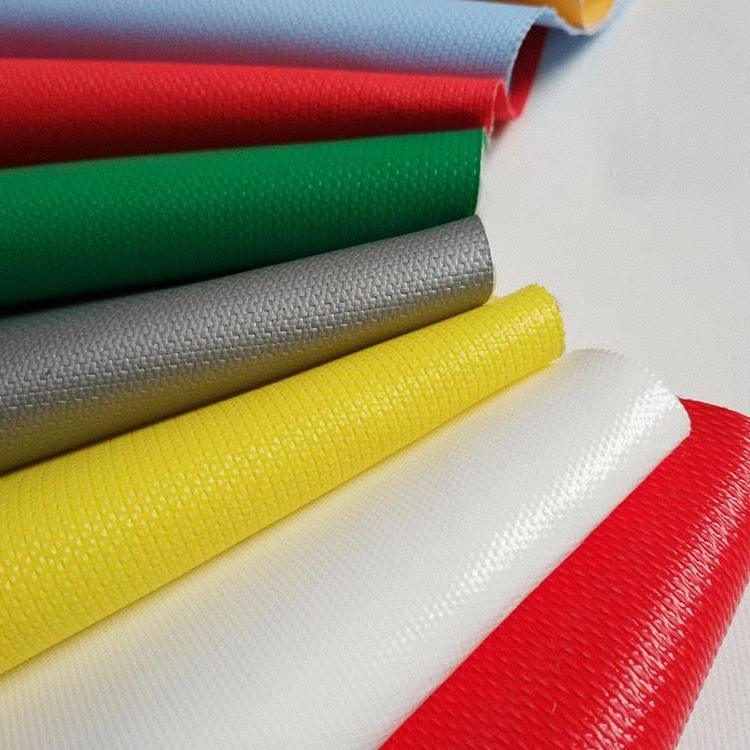

Acrylic Coated Fiberqlass Fabric
Acrylic-coated fiberglass fabric combines high strength with excellent corrosion and weather resistance. This versatile material is widely used in construction, transportation, and various other industries.

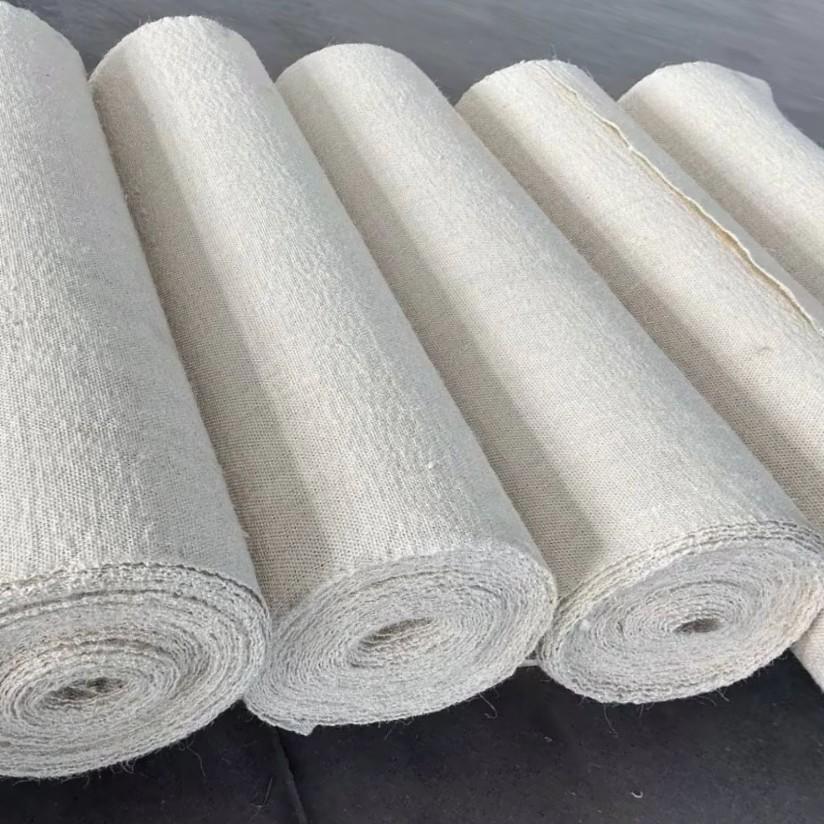

Ceramic Fiber Fabric
Ceramic fiber fabric is a high-performance, lightweight refractory material made from high-quality ceramic fibers. After undergoing a specialized treatment process, it exhibits excellent high-temperature resistance, heat insulation, and corrosion resistance. This versatile fabric is widely used in industries such as metallurgy and chemical processing.
BOOST YOUR BUSINESS WITH CUSTOM FIBERGLASS FABRIC
NQ custom fiberglass fabric allows customers to choose the textures, sizes, colors, and finishes that best suit their needs. We are committed to meeting your specific packaging requirements. You can trust that all our fiberglass fabrics adhere to strict quality control standards. With our advanced manufacturing processes, we ensure a perfect finished product featuring a flat surface, clear texture, good dimensional stability, and a distinct brand identity that will make your product stand out on the shelf.

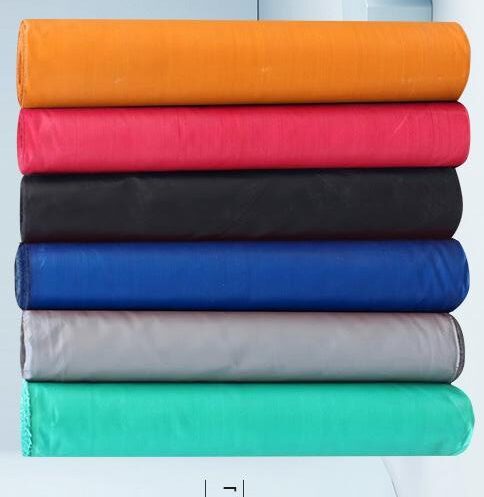

Color Customization
We offer fiberglass fabrics in a range of standard colors, including white, gray, and black, as well as special metallic shades like electric gold and silver. You can also choose from surface mixed colors, interwoven designs, or gradient effects to meet your diverse needs. Additionally, we accept custom color requests. Simply provide a color sample or number, and we will do our best to match or develop the corresponding color for you.
Size Customization
We offer fiberglass fabrics in various lengths and widths, with specifications including a warp density of 18±1.8 per cm, a weft density of 13±1.3 per cm, and a weight of 430 g/m² ±10. We also support customization for rolls and tape. Since different products have varying weights, warp and weft densities, yarn types, and thicknesses, please contact us for specific specifications.
Organizational Structure Customization
We support various fabric structures, including plain, twill, and satin, as well as customization for different braiding options, such as single strands and twisted plies.
Label Customization
Labels are essential for product identification and information. We offer label customization services that include printing product names, specifications, brand logos, production dates, and other relevant details. To ensure durability and clarity, we use high-quality label materials and advanced printing technology.
Packaging Customization
We use various packaging methods for different sizes of fiberglass fabric, including polyethylene bags, cartons, cardboard boxes, wooden crates, and roll packaging. The choice of packaging depends on the type, specifications, and intended use of the fabric. You can also request specific packaging to ensure your product is well protected.
Color Box Customization
Our dedicated team of designers manages packaging and design solutions from start to finish to meet your business needs. This includes design, material selection, and printing. We can create custom boxes in matching and unique colors to enhance your brand image.
FIBER GLASS FABRIC SPECIFICATIONS
Place of Origin | China |
Brand Name | NQ |
Model Number | Glass fiber twisted fabrc，Glass fiber woven roving，Glass fiber unidirectional fabric，Glass fiber axialfabric，Glass fiber multiaxialfabric |
Weight | Different models have different weights |
Surface Treatment | Silicon Coated |
Width | 100-5200mm，custom |
Weave Type | Plain, twill, satin, etc |
Yarn Type | E-glass |
Alkali Content | Alkali Free |
Standing Temperature | 550C |
Colour | White, grey, black, custom |
Material | E Glass/ Fiber Yarn |
Good Features | Insulation, heat resistance, corrosion resistance, high strength and good mechanical properties |
Thickness | 0.03-0.90±0.10mm,It varies from model to model |
temperature | 550℃ |
Roll Length | 1-50m,Cusomized |
Usage | Aerospace, automobile manufacturing, construction, electronics, sports equipment, shipbuilding and new energy and other industries |
Produce Name | Fiber Glass Fabric |
Material | 100% Fiberglass |
Glass type | E/C-GLASS |
Color | White，customizable |
Unit weight | 225gsm/300gsm/450gsm/600gsm，customizable |
Width | 1040 mm/1250mm/1270mm/2850mm，customizable |
NQ FIBERGLASS FABRIC PRODUCTION PROCESS
1. Raw Materials
We use high-quality raw materials for producing fiberglass fabric. Our fiberglass yarns are sourced from Monolith Group, the world’s largest producer, including brands like Saint-Gobain. These yarns are 20% stronger than standard fiberglass yarns, ensuring superior performance.
2. Twisting Process
We use an automated twister for precise twist regulation and stable yarn output. Additionally, a combination of tension and yarn guide devices ensures uniform tension and stable yarn pathways during the twisting process.
3.Weaving Process
The fiberglass yarn is woven on a high-speed rapier loom to create flat unidirectional or multidirectional reinforced fabric. We use tension magnetic separators to alleviate warp distortion caused by changes in tension, resulting in a strong and flexible cloth.
4. Coating Process
Before surface coating, the fiberglass cloth is pretreated to improve adhesion between the fabric and the subsequent coatings. One or more intermediate layers are applied over the primer. The top coat is the final layer in the coating process, with common types including acrylic, polyurethane, and fluorocarbon paints.
5. Drying And Curing
After the coating process, it is usually necessary to cure the coating to ensure that the resin or paint fully hardens, forming a durable protective layer. Curing methods can include natural drying, heat curing, or UV curing, depending on the specific requirements of the coating material.
6. Cutting Process
We offer two cutting methods: manual cutting and mechanical cutting. Manual cutting, which uses scissors or knives, is suitable for small batches where precision requirements are not critical. In contrast, mechanical cutting employs automatic or laser cutting machines that follow a preset program to ensure fast and accurate cuts, making it ideal for mass production or complex shapes.
7.Quality Inspection
8. Packing
We offer a variety of packaging methods, including roll, fold, and pallet packaging, to protect products from damage during transport and storage while facilitating handling and identification. These methods help maintain product quality, reduce logistics costs, and ensure traceability and ease of management.
SF
Warehouse and factory
Total annual revenue
Skilled worker
WHY DO MORE THAN 400 CUSTOMERS WORLDWIDE CHOOSE NQ?
Excellent Product Quality
Our factory features eight production lines and utilizes the latest glass fiber textile technology. We use high-quality raw materials, sourcing, sorting, and processing all fiberglass manufacturing materials on-site. This enables us to closely monitor and control the quality of our fiberglass fabrics, ensuring they meet our stringent quality management standards.
Competitive Pricing
By choosing our custom fiberglass fabric, you not only receive a high-quality product but also benefit from competitive pricing in the market. Our efficient production process, supported by eight dedicated production lines, enables us to fulfill bulk orders promptly, minimizing costs and reducing the risk of delayed shipments. Trust NQ to provide you with the ideal solution that seamlessly integrates quality, customization, and efficiency in every fiberglass fabric production.
Personalized Customized Service
As your trusted manufacturer of fiberglass fabric, we provide tailor-made custom services and packaging solutions for a wide range of fiberglass products. Rely on our expertise to meet your exacting standards and elevate your brand with our professional-grade fiberglass fabric.
Certificate
FIBERGLASS FABRIC WHOLESALE IN NQ
Our expertise in fiberglass manufacturing positions us as one of the most trusted fiberglass fabric and cloth manufacturers in China. With our own fiberglass factory, we produce a wide variety of fiberglass fabrics and other products for the fiberglass industry, enabling us to accept wholesale orders from customers looking to reduce costs. Our fiberglass fabric offers the following benefits:
Excellent Insulation Properties
Fiberglass fabric boasts excellent electrical insulation properties, providing stable insulation performance across various electrical applications. This ensures the safe operation of electrical equipment.
Excellent Heat Resistance
Fiberglass fabric maintains stable performance in high-temperature environments and is resistant to deformation and melting, making it ideal for industrial applications that require high temperature resistance.
Excellent Corrosion Resistance
Fiberglass fabric offers excellent corrosion resistance to a variety of chemicals, effectively resisting acids, alkalis, and other corrosive substances, which helps to extend its service life.
High Strength And Mechanical Properties
Although fiberglass cloth is somewhat brittle and has limited wear resistance, it still possesses high mechanical strength along with good tensile and bending properties, allowing it to withstand certain mechanical loads.
Light Weight And High Strength
Fiberglass fabric is lighter than traditional metal materials while maintaining higher strength, which supports lightweight product design, enhances energy efficiency, and facilitates easier transportation.
Good Processability And Adaptability
Fiberglass fabric can be easily processed into various shapes and sizes to meet the requirements of different applications. Additionally, its surface can be treated in multiple ways, such as electroplating or coating, to enhance its performance or aesthetic appeal.
APPLICATION OF GLASS FIBER FABRIC
Construction Industry
Direct roving for pultrusion is compatible with unsaturated polyester, vinyl ester, epoxy, and phenolic resins. It is widely used in various fields, including construction and the telecommunications industry.
Type of fiber：E/ECR-GLASS
Linear density( tex)：300-9600
Compatible resin：UP,VE
Electronic And Electrical Industry
Direct roving for LFT is designed for reinforcing PP and PA resins and is widely used in industries such as automotive, construction, packaging, military, and electrical markets.
Type of fiber：E-GLASS
Linear density ( tex )：300-2400
Compatible resin：PP, PA
Transportation Industry
The roving is compatible with polyester, vinyl ester, and epoxy resin systems. It is specifically designed for the FRP filament winding process, providing rapid wet-out and thorough saturation with low resin consumption.
Type of fiber：E/ECR-GLASS
Linear density( tex )：300-9600
Compatible resin：UP,VE,PF
New Energy Industry
Direct roving for weaving is compatible with polyester, vinyl ester, phenolic, and epoxy resins. It is widely used in the production of fiberglass warp knitting fabric, wind turbine blades, and in the boat industry, among other applications.
Type of fiber：E/ECR-GLASS
Linear density( tex )：300-4800
Compatible resin：UP,VE,PF
ERP Product
The roving is designed for spraying process. it is treated with silane sizing which is compatible with unsaturated polyester. The typically applications include automotive parts, FRP boat hulls, sanitary products, FRP storage tanks, pipes, cooling towers and so on.
Type of fiber：E-GLASS
Linear density( tex )：2400/4800
Compatible resin：UP,VE
Structural Product
The roving is designed to contribute to Class “A” surface in different applications. lt is suitable to be used in the automotive parts such as truck body panels, grill opening panels where smooth surface is needed, it can also be used for structural molded applications.it also contributes good laminate mechanical properties.
Type of fiber：E/ECR-GLASS
Linear density ( tex )：2400/4800
Chopping Roving For Headliner
It is specially designed for hot press molding automotive headliner manufacturing. lt has good fiber distribution which contributes to a good finished headliner surface. lt has excellent molding property so the finished headliner will not have any wrinkles.
Type of fiber:E/ECR-GLASS
Linear density( tex ):2400/4800
Compatibie resin:UP，VE，PU
Assembled Roving For Pultrusion
The roving is compatible with polyester, vinyi ester, and epoxy resin systems. lt is
designed for use in the end products which require high mechanical properties. it
can be used for FRP grid, FRP windows and doors, FRP tent supporting pole.
Type of fiber:E/ECR-GLASS
Linear density( tex ):2400/4800
Filament diameter:13-14
Compatible resin:UP，VE
Panel Roving
It is designed to be used in continuous FRP transparent panel production. The
finished product offers light weight, high strength, high impact resistance and
excellent transparency.
Type of fiber:E/ECR-GLASS
Linear density( tex ):2400-4800
Compatible resin:UP,VE
Assembled Roving For Chopping
The roving are compatible with polyester, vinyl ester and epoxy resins, principally
used to produce CSM and stitch combo mats.
Type of fiber:E-GLASS
Linear density(tex) :2400
Fiament diameter:12-13
Compatibie resin:UP, VE
Size content ( %):0.5±0.15
Assembled Roving For GMT
Assembled roving for GMT is designed for reinforcing modified PP.And it is a
structural material,which is widely used in automotive,construction,packaging,
electrical equipments industry and so on.
Type of fiber:E/ECR-GLASS
Linear density( tex):2400
Compatible resin:PP
Combotex Roving
COMBOTEX ROVING(PP+GIBERGLASS) is a kind of high performance prepreg which is made of glass fiber coated PP resin, which can be directly used to form PP resin composite, wilhout the need to add extra resin.
The use of the product includes aerospace, automotive industry, construction, sports equipment, new energy and other aspects.
Type of fiber:E/ECR-GLASS
Resin:Polypropylene resin
Fiberglass Content:60%
Linear density(tex):1870
WHAT PEOPLES SAY ABOUT US
“Working with NQ fiberglass fabric has always been a smooth experience. The quality of their products is consistently stable, ensuring that each batch meets our high standards, which significantly reduces our quality control costs. Additionally, their delivery times are always reliable, providing strong support for our production schedule. Overall, NQ is undoubtedly one of our most trusted partners.”
Daniel Parker
Entrepreneur
“My first experience using NQ fiberglass fabric was highly satisfying. From the initial sample testing to subsequent bulk orders, the entire process was efficient and professional. I especially appreciated their customer service team, who were very patient and offered valuable advice and assistance to our new customers with specific product requirements. I look forward to more collaboration opportunities in the future.”
James Rodriguez
Entrepreneur
“Since choosing NQ fiberglass fabric as our supplier, I have clearly noticed an increase in cost-effectiveness. Their competitive pricing and flexible batch customization services, combined with a commitment to quality, have helped us effectively reduce inventory pressure and production costs. The NQ team is a valuable partner that responds quickly to market needs and consistently provides the best cost optimization solutions at critical moments.”
Mark Wilson
Entrepreneur
FIBERGLASS FABRIC SUPPLIER FAQ
What is your MOQ?
Our MOQ is usually 1x20ft container.But we accept lower quantity for your trial order. Please feel free to inform us your plan for
purchasing, we will offer the price correspond to your qty. And we hope your would increase your order qty after you check our
product quality and know our services.
What is the shipping port?
We ship the goods via Shanghai port.
How many colors are available?
We can do custom color when reach our MOQ qty.
Our regular colors are white, yellow, green, blue, orange, red etc.
What format of the file do you need if I want to do my own design?
For printing label design, we need AI or PDF file for set up the print-plate.
What is your delivery time?
The time of delivery is about 20~30days after we receive the deposit.
What is your sample time?
Usually we will take 7-10 days to make the samples.
Which Shipment way is available?
By sea to your designated port.
Which Payment way is workable?
1. Irrevocable L/C, Cash, PayPal, Credit card and T/T money transfers.
2.30% T/T deposit in advance, 70% balance before shipment after presentation of ready cargo.
3.L/C ( Irrevocable LC at sight)
If you need custom size such as gram weight and mesh size etc or private logo pls feel free inquiry us!
FIBERGLASS FABRIC FAQ
What is glass fiber cloth?
Glass fiber cloth, also known as Fiber Glass Fabric, is a material composed of woven glass fibers. It is manufactured by melting glass into a liquid state and drawing it into thin fibers, which are then woven into various fabrics. Glass fiber cloth is lightweight, has high tensile strength, is resistant to chemical corrosion, and is an excellent electrical insulator. It is widely used in industries such as aerospace, automotive, marine, construction, electronics, and sporting goods due to its versatile properties and easy processing.
What material is fiberglass?
Fiberglass is a material made from extremely fine fibers of glass. These fibers are formed when molten glass is extruded through tiny holes in a burner. As the molten glass exits the holes, it is rapidly cooled by air, resulting in thin, strong glass fibers. These fibers are then woven into fabrics or further processed into composite materials using resins or other binders. Fiberglass is lightweight, corrosion-resistant, thermally and electrically non-conductive, and has good mechanical properties, making it useful in a wide range of applications from construction to aerospace.
Is fiberglass cloth waterproof?
Fiberglass cloth is not inherently waterproof, but its composition, weaving process, and potential treatments contribute to its water resistance properties. The glass fibers themselves are non-porous and resistant to water absorption, while coatings or resins can be applied to further improve its water resistance. However, these factors do not make fiberglass cloth fully waterproof.
What are the three types of fiberglass cloth?
The three main types of fiberglass cloth are Tow (Pure Unidirectional Fiber Form), Veil Mats, and Woven Fabrics.
What is fiberglass fabric used for?
Fiberglass fabric, also known as glass fiber cloth or glass fiber fabric and tape, is a versatile material with a wide range of applications. Its uses can be broadly categorized into several key areas:
- Composites Manufacturing:
- Fiberglass fabric is a crucial base material for hand lay-up processes in the production of fiberglass-reinforced plastics (FRP), commonly known as glass-reinforced plastics or simply glass steel. These composites are used in various industries due to their high strength-to-weight ratio and corrosion resistance.
- It can be combined with resins to form composite structures that are lightweight yet strong, making them ideal for applications where durability and light weight are essential, such as boat hulls, automotive body parts, storage tanks, and wind turbine blades.
- Electrical Insulation:
- Fiberglass fabric is commonly used in the electrical industry due to its excellent electrical insulation properties. It is used in the production of electrical insulation layers, printed circuit boards (PCBs), and as insulation for electrical equipment.
- Construction and Building Materials:
- In the construction sector, fiberglass fabric is used in the production of insulation materials for walls, roofs, and floors. It helps improve energy efficiency by reducing heat loss and providing sound insulation.
- It is also used as a reinforcing material in the production of various building components, such as beams, columns, and roofing materials.
- Industrial Applications:
- Fiberglass fabric is used in industrial filtration systems due to its resistance to corrosion and ability to withstand high temperatures. It is used in the production of filter bags, cartridges, and other filtration media.
- It is also employed in the production of corrosion-resistant linings for pipes, tanks, and other equipment in chemical processing plants and other industries where exposure to harsh chemicals is common.
- Automotive Industry:
- Fiberglass fabric is used extensively in the automotive industry for the production of lightweight body panels, spoilers, and other aerodynamic components. It helps reduce vehicle weight, which improves fuel efficiency and overall performance.
- Marine Industry:
- In the marine industry, fiberglass fabric is used to construct boat hulls, decks, and other components. Its durability and resistance to corrosion make it an ideal material for use in saltwater environments.
- Specialty Applications:
- Fiberglass fabric is also used in the production of sports equipment, such as surfboards, snowboards, and kayaks, due to its lightweight and high strength.
- It is also used in the aerospace industry for the production of lightweight, high-strength composite structures.
In summary, fiberglass fabric is a highly versatile material with a wide range of applications across various industries. Its properties, such as high strength, lightweight, corrosion resistance, and electrical insulation, make it an essential component in the production of composites, insulation materials, filtration systems, and various other products.
What is the difference between fiberglass cloth and fiberglass mat?
Fiberglass cloth and fiberglass mat are both forms of fiberglass material, but they differ in their structure, properties, and applications. Here are the key differences between the two:
1. Structure
Fiberglass Cloth: Fiberglass cloth is a woven material made from glass fibers that are intertwined in a similar fashion to traditional fabrics. The fibers are arranged in a crisscross pattern to form a strong, flexible sheet.
Fiberglass Mat: Fiberglass mat, on the other hand, is a non-woven material made from glass fibers that are randomly oriented and bonded together using a binder material. This results in a less structured, more flexible, and conformable material.
2. Properties
Strength and Durability: Both fiberglass cloth and mat are known for their strength and durability. However, fiberglass cloth tends to be stronger and more rigid due to its woven structure, making it better suited for applications requiring high structural integrity.
Conformability: As mentioned in the given statement, fiberglass mat is easier to conform to tight corners and curves due to its non-woven, flexible nature. This makes it ideal for applications where a tight fit is required, such as insulation or soundproofing in complex shapes.
Surface Finish: Fiberglass cloth has a smoother surface finish compared to fiberglass mat, which can have a more textured appearance due to the random orientation of its fibers.
3. Applications
Fiberglass Cloth: Fiberglass cloth is widely used in composites manufacturing, where it is combined with resins to create strong, lightweight structures. It is also used in electrical insulation, building reinforcement, and as a base material for various industrial applications.
Fiberglass Mat: Fiberglass mat is commonly used in insulation and soundproofing applications due to its conformability and ability to fill gaps and voids. It is also used in the production of fiberglass core materials for composites, where it provides additional strength and stiffness.
Summary
In summary, the main differences between fiberglass cloth and fiberglass mat lie in their structure, properties, and applications. Fiberglass cloth is a woven material with high strength and rigidity, making it suitable for structural applications. Fiberglass mat, on the other hand, is a non-woven material with excellent conformability, making it ideal for insulation and soundproofing in complex shapes.
Why use fiberglass cloth?
The reasons for using fiberglass cloth are primarily due to its high strength and durability, wide range of applications, excellent insulation properties, good chemical stability, as well as other characteristics such as crack resistance, waterproofness, and fire resistance. Additionally, fiberglass cloth is a recyclable material, making it environmentally friendly and in line with sustainable development requirements. These advantages enable fiberglass cloth to have extensive applications in various industries, including within circuit boards, conveyor belts, building reinforcement, wall insulation, aerospace manufacturing and maintenance, automotive parts manufacturing and repair, chemical corrosion prevention and insulation, and more.
Is fibreglass fabric safe?
Fibreglass fabric is generally considered safe, but proper handling is crucial. Wear protective gloves, long sleeves, and eye protection to avoid skin and eye irritation. Wear a dust mask or respirator when cutting or sanding to prevent inhalation of glass fibers. Consider chemical compatibility and take fire safety measures. Fibreglass fabric is recyclable, so dispose of it responsibly to minimize environmental impact.
How strong is fiberglass fabric?
Fiberglass fabric is a highly strong and durable material, boasting excellent tensile strength and weight-to-strength ratio. It maintains its shape and integrity under stress, and can be customized to meet specific strength requirements. Fiberglass fabric is widely used in applications that require structural reinforcement or tension members due to its impressive strength properties.
Glass fiber fabrication process and thickness.
The manufacturing process of glass fiber is a complex one that involves multiple steps, including raw material preparation, melting, fiber formation, fiber treatment, collection and finishing, subsequent processing, and quality control. In this process, the selected glass raw materials are first crushed and screened, then heated to a molten state in a high-temperature furnace. Next, the molten glass is drawn into fine fiber streams through rotating spinnerets or nozzles, and further stretched and elongated by high-speed jets. Following this, the fiber bundles undergo cooling, coating, or oiling processes to enhance their flexibility, strength, and prevent breakage and tangling. Finally, the fibers are collected and finished into rolls or packages for further processing and use.
Regarding the thickness of glass fibers, it varies depending on the specific application requirements. Common thickness specifications include 0.2mm, 0.25mm, 0.3mm, 0.5mm, 1mm, 1.5mm, 2mm, 3mm, and so on. The choice of which thickness to use depends on the operating environment and functional requirements. For instance, glass fiber cloths and tapes typically have thinner thicknesses, while glass fiber tubes may require thicker walls to withstand higher pressures and loads. In summary, the thickness specification should be selected based on the actual application needs.
Can clothes be made out of fiberglass?
Yes, clothes can technically be made out of fiberglass, although it is not a common practice. Fiberglass, being a type of glass that can be used in textiles, implies that it can be woven or processed into fabric form. However, clothing made from fiberglass would likely be uncomfortable to wear due to its stiffness, lack of breathability, and potential for skin irritation. Fiberglass is more commonly used in industrial and construction applications where its strength, durability, and resistance to heat and corrosion are valued.
Can you wash fiberglass fabric?
Yes, fiberglass fabric can be washed, but it requires special care and handling. The washing process for fiberglass fabric is different from that of traditional textiles due to its unique properties and composition. Here are some key points to consider when washing fiberglass fabric:
Gentle Cleaning: Fiberglass fabric should be cleaned gently to avoid damaging the fibers. Aggressive scrubbing or rubbing can cause the fibers to break or fray.
Use of Mild Detergent: A mild detergent should be used to clean fiberglass fabric. Harsh chemicals or strong detergents can degrade the fibers and weaken the fabric.
Temperature Control: The washing temperature should be controlled to prevent any adverse effects on the fiberglass fabric. Hot water can cause the fibers to shrink or lose their shape, while cold water may not effectively remove dirt and grime.
Air Drying: Fiberglass fabric should be air-dried after washing. Using heat sources like a dryer can damage the fibers and cause them to become brittle.
Avoid Ironing: Ironing fiberglass fabric is not recommended as it can melt or damage the fibers.
It’s important to note that the specific washing instructions for fiberglass fabric may vary depending on the manufacturer or the specific application of the fabric. Therefore, it’s always recommended to consult the manufacturer’s guidelines or seek professional advice before washing fiberglass fabric to ensure proper care and maintenance.
NEWS
