Are you looking for a material that combines lightweight design, extreme strength, and versatile applications? Carbon fiber sheets might be exactly what you need. From aerospace components to sports equipment and DIY projects, these sheets offer unmatched performance, durability, and style. But with options like sheets and plates, choosing the right one can be confusing.

In this guide, we’ll break down their differences, key properties, and practical uses, so you can pick the perfect carbon fiber material for your project.

1 What Are Carbon Fiber Sheets?

At its core, a carbon fiber sheet is a composite material made from carbon fibers bonded with a resin matrix, usually epoxy or polyurethane. This combination gives the sheet an incredible strength-to-weight ratio, making it far stronger than steel while remaining incredibly light.

Carbon fiber sheets are used across industries—aerospace, automotive, sporting goods, and even custom DIY projects. Their thin, lightweight nature makes them perfect for applications where flexibility, strength, and aesthetics matter.

You’ll find carbon fiber sheets in a variety of sizes, thicknesses, and finishes. Whether you need a unidirectional sheet for maximum tensile strength or a woven twill finish for aesthetic appeal, there’s a sheet tailored to your project.

1.1 The Core Composition

Understanding the composition of carbon fiber sheets helps you choose the right material.

• Carbon Fibers: These fibers provide tensile strength and stiffness, with high-end grades reaching up to 4,000 MPa. The fiber alignment determines mechanical performance. For example, unidirectional fibers provide maximum strength in one direction, while woven patterns balance flexibility and durability.
• Resin Matrix: This binds the fibers together into a solid, cohesive sheet. Epoxy resin is commonly used for high-strength applications due to its superior adhesion and thermal stability.

The combination of fibers and resin is what gives carbon fiber sheets their unique strength, lightweight, and thermal resistance.

1.2 The Manufacturing Process

Manufacturing carbon fiber sheets is a precise process:

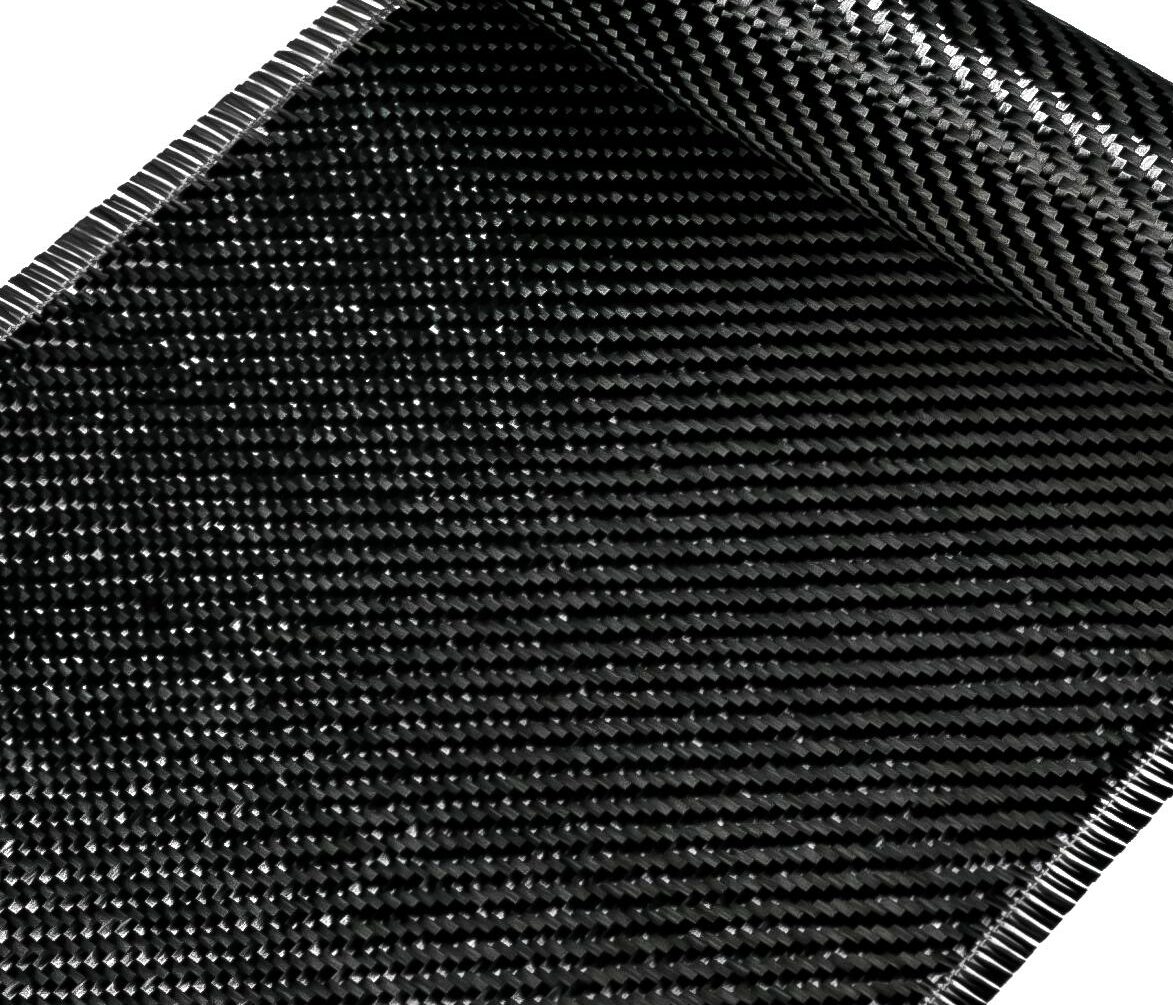

• Weaving Fibers: Carbon fibers are woven into fabrics or mats. Prepreg sheets come pre-impregnated with resin, reducing errors and improving consistency.
• Layup: Multiple layers are stacked and oriented based on desired mechanical properties.
• Curing: Heat and pressure set the resin, forming a rigid, high-performance sheet.

Advanced manufacturing techniques, like automated weaving and resin infusion, have made carbon fiber sheets more accessible while maintaining top-tier performance.

1.3 The Layup Technique

The layup process determines how strong and flexible your sheet will be.

• Layering: Multiple sheets are stacked in specific directions to achieve desired mechanical properties.
• Vacuum Bagging: This technique removes air pockets, ensuring a defect-free sheet.

By customizing fiber orientation (0/90° for bending, ±45° for torsion), you can optimize carbon fiber sheets for virtually any project.

1.4 Material Properties

Carbon fiber sheets are known for:

• High Tensile Strength: Perfect for aerospace or automotive applications where weight reduction is critical.
• Lightweight Construction: Carbon fiber is significantly lighter than steel or aluminum.
• Corrosion and Fatigue Resistance: It won’t rust or deteriorate under repeated stress.
• Thermal Stability: Withstands temperatures up to 1,650°C, ideal for high-heat environments.

These properties make carbon fiber sheets ideal for engineers, hobbyists, and designers alike.

1.5 Quality Grades

Carbon fiber sheets come in different grades:

• Standard Modulus: Balanced performance and cost, suitable for most applications.
• High Modulus: Superior stiffness and strength, used in aerospace or professional racing.

Surface finishes, such as twill weave or gloss, add aesthetic appeal, making them popular in custom projects and decorative applications.

2 Carbon fiber Sheets vs. Plates Explained

While sheets and plates share the same base material, their differences lie in thickness, rigidity, and intended use.

• Carbon fiber Sheets: Perfect for wrapping around curves, light panels, and stylish DIY projects.
• Carbon fiber Plates: Designed for load-bearing or high-strength applications, such as aerospace components, heavy machinery, and structural supports.

Choosing the right type is simple: use sheets when flexibility and low weight matter, and plates when strength and rigidity are your top priorities.

3 Why Choose Carbon Fiber?

If you’ve ever wondered why industries continue to rely on carbon fiber products, here’s why.

3.1 Exceptional Strength-to-Weight Ratio

Carbon fiber materials are up to five times stronger than steel while being significantly lighter. In automotive applications, using carbon fiber plates instead of steel parts can reduce weight by 60%, enhancing fuel efficiency and speed. In aerospace, lighter carbon fiber products lead to up to 20% less fuel consumption, saving costs and reducing emissions.

3.2 Versatility Across Industries

Carbon fiber sheets are used in a wide range of applications due to their exceptional strength and lightweight properties, making them an ideal choice over traditional materials. Our collection of carbon fiber products includes standard modulus plates and prepreg sheets, which are available in various thicknesses and sizes to meet diverse needs.

• Motorsports: Lighter, stronger parts improve performance and safety.
• Wind Energy: Long turbine blades for better efficiency.
• Sports Equipment: Bikes, rackets, and gear that are strong but lightweight.
• Construction: Reinforcing beams without adding weight.

3.3 Durability and Resistance

Unlike metals, carbon fiber materials like carbon fiber sheets and plates don’t corrode and resist fatigue, making them ideal for long-term applications with exceptional strength.

3.4 Performance and Efficiency

Whether you’re building a drone, a racing car, or renewable energy equipment, carbon fiber plates’ lightweight strength enhances overall performance and efficiency.

3.5 Working With Carbon Fiber

While carbon fiber sheets are versatile carbon fiber products, they require careful handling.

3.6 Machining

• Use CNC machines or diamond-coated tools.
• Reduce feed rates to avoid splintering or delamination.
• Ensure adequate cooling to prevent overheating.

3.7 Drilling

• Use carbide or diamond-coated drill bits.
• Drill slowly to prevent cracks.
• Support the sheet with wood or plastic to maintain clean exits.

3.8 Bonding

• Epoxy adhesives work best for strong, durable bonds.
• Proper surface prep is essential: sand and clean before bonding.
• Use clamps or vacuum bagging during curing.

4 Limitations of Carbon Fiber Sheets

Carbon fiber isn’t perfect:

• Cost: Carbon fiber costs $20–$40/kg, while steel may cost $1/kg.
• Repair Complexity: Damaged sheets require specialized techniques.
• Recycling Challenges: Carbon fiber is hard to recycle and has a low recycling rate (<5%).

Despite these limitations, its advantages often outweigh the drawbacks, especially in high-performance or specialized applications.

5 The Sustainability Question

Manufacturing carbon fiber is energy-intensive, requiring high-temperature processing to remove non-carbon materials. While recycling remains limited, innovations like hybrid materials (bamboo, hemp) and advanced recovery techniques are improving sustainability.

Using carbon fiber sheets strategically—for example, in long-lasting aerospace components or energy-efficient vehicles—can reduce environmental impact over time.

Conclusion

Carbon fiber sheets are lightweight, strong, and versatile, making them a favorite for professionals and DIY enthusiasts alike. Whether you’re seeking structural performance or aesthetic appeal, carbon fiber can elevate your project.

By understanding their properties, applications, and limitations, you’ll be ready to choose the right carbon fiber sheet or plate and maximize its potential.
