Acrylic Coated Fiberqlass Fabric

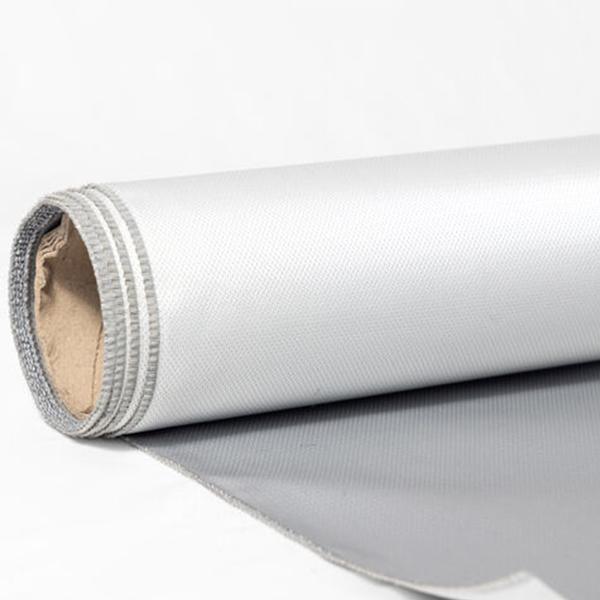

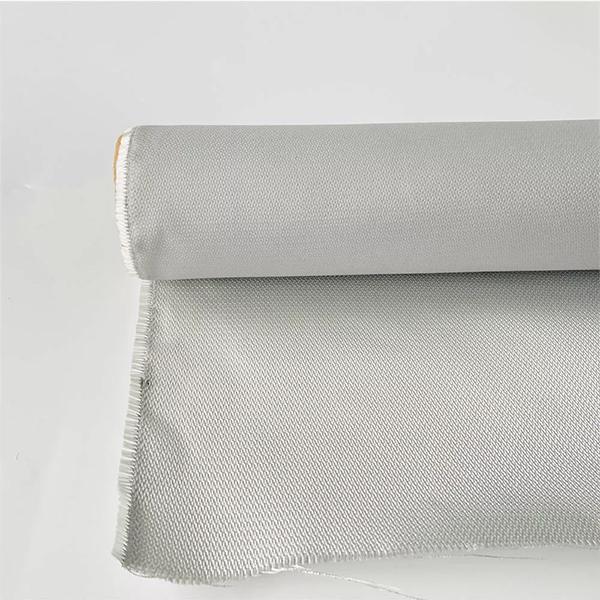

Acrylic Coated Fiberglass Fabric is made from high-strength E-glass fiberglass cloth, coated on one or both sides with a durable acrylic coating. This material combines the excellent heat resistance of fiberglass with the enhanced surface properties provided by the acrylic layer, including water resistance, oil resistance, abrasion resistance, and aging resistance.
- Heat Resistant
- UV & Weather Resistant
- Durable Surface
- Flexible & Easy to Process
- Flame Retardant
- High Strength & Tear Resistance
- Customizable Options
Danyang NQ Glass Fiber Weaving Co., Ltd. — A trusted Chinese fiberglass manufacturer with 16+ years of experience, 500+ skilled staff, and 2,560+ production machines delivering quality you can rely on.
Specification
- Base Material: E-glass fiberglass cloth
- Coating: Acrylic coating (single or double side)
- Thickness: Typically 0.3mm to 1.5mm (customizable)
- Weight: Usually 300g/m² to 1200g/m² depending on coating and fabric density
- Width: Standard widths include 1.02m, 1.52m, 2.04m, or customized
- Length: Typically 50m per roll, customizable length available
- Temperature Resistance: Base up to 550°C; coating continuous use up to ~150°C
- Flame Retardancy: Meets NFPA 701, DIN 4102 (custom certifications available)
- Tensile Strength: Warp and weft ≥ 1500N/5cm (varies by model)
- Tear Strength: Warp and weft ≥ 250N (varies by model)
- Color Options: Standard white, gray, or custom colors on request
- Surface Finish: Smooth, uniform acrylic coating for enhanced durability and processing
Features
- High Temperature Resistance
Withstands up to 550°C (base) and 150°C (coating), ideal for heat-intensive environments. - Excellent Weather Resistance
Superior UV protection and aging resistance ensure long service life outdoors. - Strong Mechanical Properties
High tensile and tear strength for reliable durability under mechanical stress. - Durable Surface Protection
Acrylic coating offers water, oil, and abrasion resistance to protect the fabric. - Flame Retardant
Meets international fire safety standards for enhanced safety compliance. - Good Flexibility and Workability
Easy to cut, sew, heat seal, and suitable for automated processing. - Customizable Specifications
Available in multiple thicknesses, weights, colors, and widths to fit project needs.
Main applications
- Industrial Insulation & Heat Shields
High heat resistance ensures stable equipment protection, reducing maintenance and replacement costs. - Protective Curtains & Covers
Excellent abrasion and tear resistance extend product lifespan, improving safety and lowering replacement frequency. - Automotive & Transportation
Superior weather and flame retardant performance enhances vehicle safety and reliability, boosting customer satisfaction. - Electrical & Electronics
Stable insulation and flame resistance reduce equipment failure risks, ensuring system reliability. - Construction & Roofing Materials
Waterproof and aging resistance adapt to harsh outdoor conditions, lowering maintenance costs and extending service life. - Marine & Offshore
Corrosion and UV resistance improve durability of vessels and facilities, decreasing repair frequency and increasing ROI.
| Type | Weaving | Density (yarn/cm) | Weight (g/m²) | Tensile Strength (N/25mm) | Tex (Warping/Weft) | Diameter (μm) |
|---|---|---|---|---|---|---|
| Warping | Weft | Warping | Weft | |||
| NQ30 | Plains | 20 ± 2 | 18 ± 2 | 23 ± 2 | ≥160 | ≥70 |
| NQ60 | Plains | 20 ± 2 | 20 ± 2 | 48 ± 4 | ≥260 | ≥260 |
| NQ80 | Plains | 12 ± 2 | 12 ± 2 | 80 ± 8 | ≥300 | ≥300 |
| NQT80 | Twill | 12 ± 2 | 12 ± 2 | 80 ± 8 | ≥300 | ≥300 |
| NQ100 | Plains | 16 ± 1 | 15 ± 1 | 110 ± 10 | ≥400 | ≥400 |
| NQT100 | Twill | 16 ± 1 | 15 ± 1 | 110 ± 10 | ≥400 | ≥400 |
| NQ130 | Plains | 10 ± 1 | 10 ± 1 | 130 ± 10 | ≥600 | ≥600 |
| NQ160 | Plains | 12 ± 1 | 12 ± 1 | 160 ± 12 | ≥700 | ≥650 |
| NQT160 | Twill | 12 ± 1 | 12 ± 1 | 160 ± 12 | ≥700 | ≥650 |
| NQ200 | Plains | 8 ± 0.5 | 7 ± 0.5 | 198 ± 14 | ≥700 | ≥650 |
| NQ200 | Plains | 16 ± 1 | 13 ± 1 | 200 ± 20 | ≥900 | ≥700 |
| NQT200 | Twill | 16 ± 1 | 13 ± 1 | 200 ± 20 | ≥900 | ≥700 |
| NQ300 | Plains | 8 ± 0.5 | 7 ± 0.5 | 300 ± 24 | ≥800 | ≥1000 |
| NQT300 | Twill | 8 ± 0.5 | 7 ± 0.5 | 300 ± 24 | ≥800 | ≥1000 |
| NQ400 | Plains | 8 ± 0.5 | 7 ± 0.5 | 400 ± 32 | ≥1100 | ≥1200 |
| NQT400 | Twill | 8 ± 0.5 | 7 ± 0.5 | 400 ± 32 | ≥1100 | ≥1200 |
| NQT400 | Twill | 6 ± 0.5 | 6 ± 0.5 | 400 ± 32 | ≥1100 | ≥1200 |
For more product specifications, please contact our professionals!
Premium quality： With 25 production lines and cutting-edge fiberglass textile technology, we ensure top-quality fiberglass materials through strict quality control.
Competitive price： By choosing our custom fiberglass fabric, you’ll enjoy top-quality products, competitive pricing, and timely delivery—helping you save costs and avoid delays.
Fully Customize： As your trusted fiberglass fabric manufacturer, we provide tailor-made customization services and packaging solutions for various fiberglass products, including weight, texture length, etc.
