Thinking about making your own carbon fiber or fiberglass parts? Whether you’re building something lightweight or custom-shaped, learning the basics of mold making is a smart way to save money and take control of your designs.
In this guide, you’ll learn how to make fiberglass and carbon fiber molds, choose the right fiberglass cloth or carbon fiber fabric, and create strong, high-quality parts tailored to your project.
So how do you make a fiberglass mold? To make a high-quality fiberglass or carbon fiber mold, you need the right materials and tools to ensure a smooth process and a strong end product. Here are some essential materials to get you started:

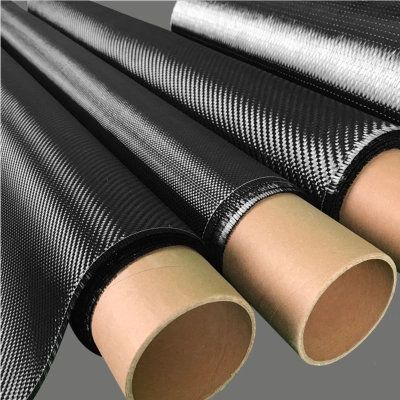

Choose between fiberglass mat for affordability and ease, or carbon fiber fabric for superior strength and lighter weight.
Resins
Common options include polyester resin (cost-effective) and epoxy resin (better adhesion and durability).
Plug or Mold Base
Use a foam board, MDF, or a 3D printed plug as the base shape for your mold.
Release Agents
To prevent your mold from sticking, apply release agents such as PVA (polyvinyl alcohol) or specialized wax.
Gelcoat (optional)
For a smooth, glossy finish on the mold surface.
Protective Gloves
Essential for safety when handling resins and chemicals.
Brushes and Rollers
For applying resin and smoothing out fabric layers evenly.
Vacuum Bagging Equipment (optional)
To remove air bubbles and ensure proper curing, especially for carbon fiber molds.
Sanding Tools
For finishing and smoothing your mold after curing, use sandpaper or electric sanders.
Having these materials and tools ready will set you up for success in making durable, precise molds.
You need to start by preparing a plug, which serves as the base shape for your mold. You can shape foam board using sandpaper و cutting tools until you achieve the desired form. Alternatively, carve an MDF board or sculpt with modeling clay by hand. Make sure the surface is smooth and accurately reflects your design, as this will directly affect the final mold quality.
Before laying fiberglass, you must apply a release agent to prevent resin adhesion and enable easy demolding later. Common options include PVA release agents or mold release wax. Once the release agent is fully dry, apply a layer of gelcoat. This gelcoat forms the outermost surface of your mold, providing a smooth و durable finish.
Next, you will start laying the fiberglass fabric layers. Evenly brush resin onto the plug, then carefully place the fiberglass fabric, using a roller to remove any air bubbles و wrinkles. Depending on your required mold thickness, repeat the layering process—allowing each resin layer to cure before applying the next.
After the resin has fully cured, carefully remove the mold from the plug. Use cutting tools to trim excess edges and clean up the mold’s outline, ensuring the dimensions و shape meet your specifications.
The final step is to sand the mold’s surface. Use sandpaper of varying grits or an electric sander to smooth out imperfections. You may also choose to apply a protective coating or additional gelcoat to enhance durability and prepare the mold for repeated use.

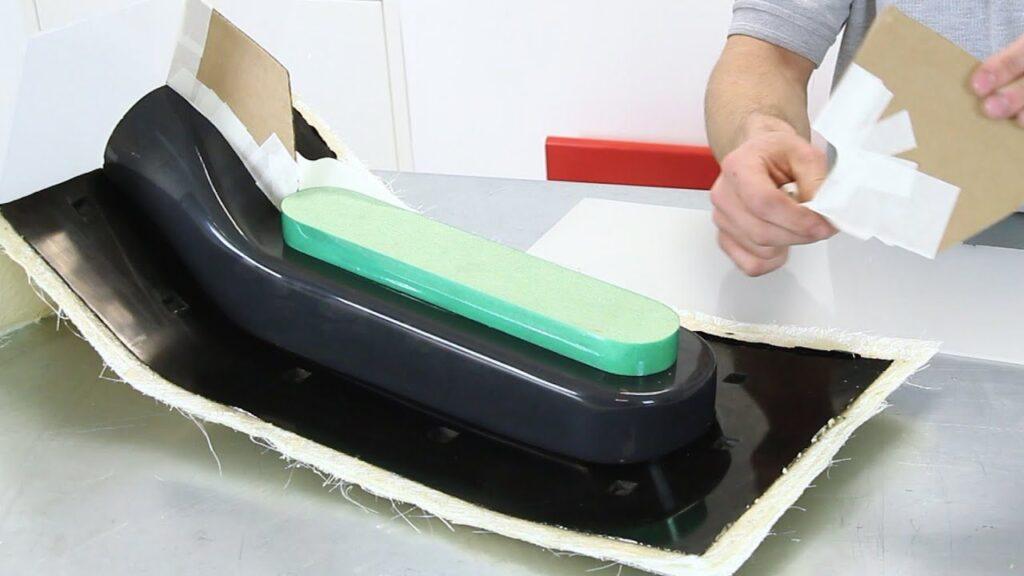

Creating a high-quality carbon fiber mold requires precision, the right materials, and a clean, well-planned workflow. Here’s how you can build a durable و accurate mold for carbon fiber layups.
Start by constructing a master plug—the physical model that defines your mold’s shape. You can shape it from foam, machine it from MDF, or 3D print it using high-temp filament. Pay close attention to dimensional accuracy و surface smoothness. Any imperfection on the plug will transfer to your final carbon fiber parts.
Once your plug is ready, seal any porous surfaces with primer or tooling coat to prevent resin absorption. Then, apply a mold release agent thoroughly across the surface. This ensures the mold won’t bond to the plug during curing.
Brush or spray on a specialized surface coat (or tooling gelcoat) to create a durable outer mold surface. Let it partially cure until tacky. This layer gives the mold its final surface finish and improves part quality.
Lay fiberglass or carbon fiber fabric over the plug, layer by layer. Apply epoxy resin to each layer using a brush or roller, making sure to eliminate air bubbles with a laminating roller. Repeat until you reach the desired mold thickness. If high precision is needed, consider vacuum bagging to consolidate layers and improve structural performance.
Allow the entire layup to fully cure at room temperature or in an oven, depending on your resin system. Once hardened, carefully demold the carbon fiber mold from the plug, using wooden wedges or plastic tools to avoid surface damage.
Trim off any excess material و sand the edges. Inspect the mold surface for imperfections، و polish or recoat as necessary. At this stage, your carbon fiber mold should be rigid, dimensionally accurate, and ready for repeated part production.
If you’re looking for a more detailed guide on using carbon fiber（fiberglass） mold kits to produce automotive parts, be sure to check out this article:
The Essential Guide to Fiberglass and Carbon Fiber Mold Making – Automotive Molds

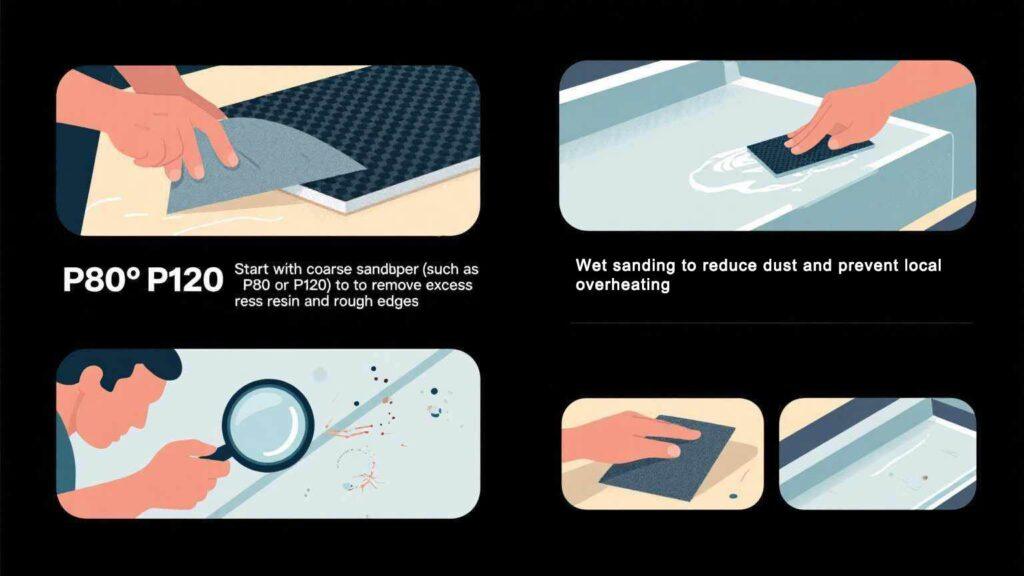

Whether you’re working with carbon fiber or fiberglass molds, sanding و finishing are essential steps to achieve a smooth surface and ensure the mold’s long-term usability. Here are several professional tips to help you refine your mold effectively:
Begin with coarse sandpaper (such as P80 or P120) to remove excess resin و rough edges. Then, gradually move to finer grits (P400, P800, or even P1000) to improve the surface finish. For carbon fiber molds, which are harder, choose more durable wet/dry sandpapers.
Sanding with water not only minimizes dust but also helps prevent localized overheating, which can cause burns or blisters on the resin surface. This is especially important when working with thick fiberglass gelcoat layers.
After sanding, carefully inspect the mold surface for any pinholes, air bubbles, or scratches. Small defects can be repaired with a fine epoxy filler or resin, followed by localized re-sanding to restore a smooth finish.
If a glossy or mirror-like surface is required, use a polishing compound to buff the mold. You may also apply mold release wax or a surface sealer to improve release performance in future use and protect the mold’s integrity.
By following this carbon fiber and fiberglass sanding guide, you’ll significantly improve your mold’s surface quality و durability—ensuring consistent, high-quality results in your composite parts.
| Fiberglass Mold | Carbon Fiber Mold |
Cost | Low material and production cost; readily available | High cost; premium-grade material |
Strength | Suitable for light to moderate applications | Exceptional strength and fatigue resistance for demanding use |
Heat Resistance | Moderate; ideal for room-temperature or low-temp curing | Excellent; suitable for elevated-temperature and pressure curing |
Ease of Use | Easy to cut, shape, and repair; beginner-friendly | Requires precision tools and experience; less forgiving to errors |
Surface Finish | Smooth finish achievable with gelcoat | Ultra-smooth, high-definition surface quality |
Durability | Limited lifespan; best for low-volume or one-off use | Long-lasting; supports repeated production cycles |
Ideal Applications | DIY projects, prototyping, custom one-off parts | Professional-grade tooling, aerospace, automotive, mass production |

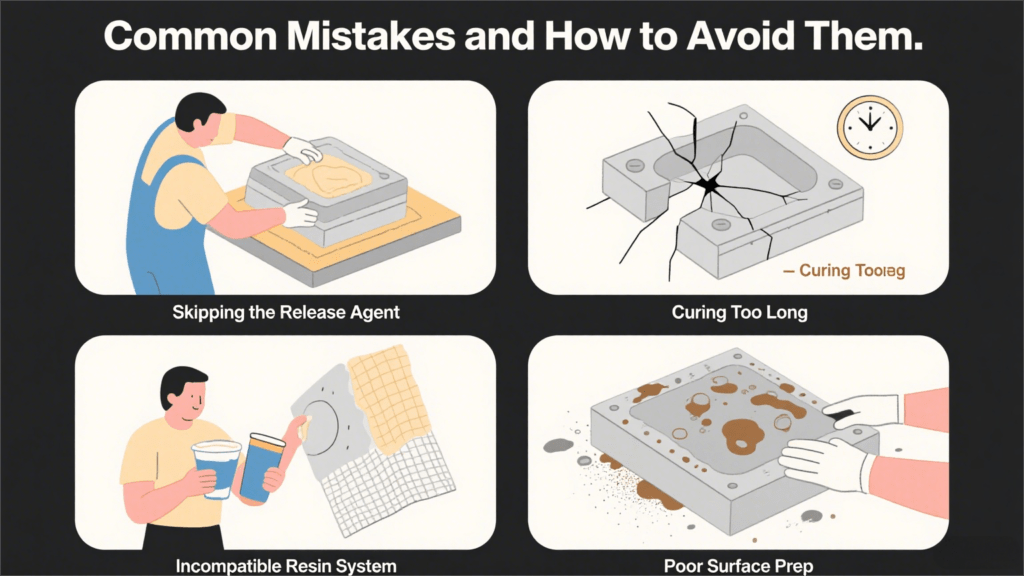

Avoid these frequent issues when making fiberglass or carbon fiber molds:
Skipping the Release Agent
Without it, the mold may stick to the plug—causing damage or total failure.
Curing Too Long
Over-curing can lead to brittleness or warping. Follow resin specs closely.
Incompatible Resin System
Polyester and epoxy resins don’t always match every fabric or gelcoat—check compatibility.
Poor Surface Prep
Dust, oil, or an unsanded plug can cause weak bonding or bubbles. Always clean and abrade.
To recap, creating a quality mold involves careful plug preparation, proper application of release agents and resin, precise layering, and thorough finishing. Starting with basic fiberglass molds is a great way to build your skills and confidence before moving on to advanced carbon fiber projects.
Ready to get started? Check out our recommended fiberglass and carbon fiber fabrics to find the perfect materials for your next mold project.
Connect with an NQ expert to discuss your product needs and get started on your project.
Yes, carbon fiber and fiberglass can be used together in a composite layup. There are many cases where carbon and fiberglass components work very well together. This combination allows you to balance cost, strength، و flexibility—using carbon fiber for high-stress zones and fiberglass for shape or volume. Just ensure resin compatibility and proper layup sequence for best performance.
Buderus 1.2738 tool steel is widely considered one of the best materials for high-precision carbon fiber molds. It offers excellent dimensional stability, high polishability, and good thermal conductivity—ideal for producing durable, repeat-use molds under heat and pressure. While more expensive than composite-based tooling, it’s the top choice for automotive, aerospace, and industrial production environments.
No, they are not the same. Carbon fiber و fiberglass are both composite reinforcement materials, but their compositions are different. Fiberglass is made from melted strands of glass, while carbon fiber is made from strands of carbon atoms bonded in a crystalline structure. Carbon fiber is generally stronger and stiffer, while fiberglass is more cost-effective and flexible.
Fiber-reinforced plastic (FRP) molds are typically made using fiberglass fabric combined with polyester, vinyl ester, or epoxy resin. This composite material is known for being strong, durable، و resistant to corrosion, extreme temperatures، و impact, making it ideal for molding complex shapes in marine, automotive, and industrial applications.
Fiberglass is significantly more cost-effective than carbon fiber. While carbon fiber offers superior strength-to-weight performance, fiberglass remains the more affordable option for most applications, especially in large-scale or budget-sensitive projects.
While cured carbon fiber composites are generally safe to handle, unfinished or cut carbon fiber surfaces can release fine, sharp fibers. These tiny fibers can cause mechanical irritation, such as itching, redness, or discomfort when they come into contact with skin. In some cases, they can even cause abrasions or become embedded in the skin like splinters. Always wear gloves and protective gear when handling raw, cut, or sanded carbon fiber materials.
切换内容Yes, you can reuse a fiberglass mold to produce carbon fiber parts. However, be aware that there might be some issues with the gelcoat on your mold over time, such as wear or degradation, which can affect surface finish quality. Proper maintenance and occasional reapplication of gelcoat or surface sealers will help extend the mold’s lifespan and ensure consistent results.
Polyurethane foam is one of the best choices for mold making. It is lightweight, easy to shape, and compatible with most resins used in fiberglass and carbon fiber layups. High-density polyurethane foam provides good dimensional stability و surface finish, making it ideal for creating plugs or master patterns in both DIY and industrial applications.
A fiberglass mold typically takes 2 to 3 days to fully cure at room temperature, depending on the type of resin, layer thickness، و ambient conditions. While the surface may feel dry within hours, full mechanical strength and stability usually require at least 48 hours. Accelerated curing is possible with heat, but be sure to follow the resin manufacturer’s guidelines.
You don’t always need a vacuum pump for carbon fiber molds, especially for small-scale or DIY projects. However, vacuum bagging significantly improves laminate quality by removing air bubbles and excess resin. As for pump specifications, CFM (cubic feet per minute) isn’t critical unless you’re working with large molds or entering production-level manufacturing. In most cases, a low-CFM pump with strong vacuum pressure is sufficient for hobby or prototype work.
Fiberglass insulation is generally mold-resistant because it is made from inorganic glass fibers, which do not support mold growth. However, mold can grow on the dust, dirt, or organic materials that accumulate on the insulation surface—especially in areas with high humidity or water damage. To prevent mold issues, ensure proper moisture control و ventilation in the insulated space.
